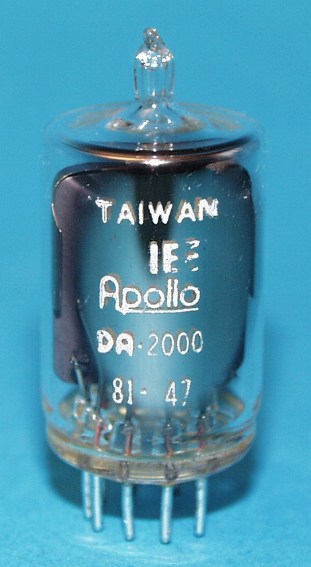

DA-2000 (Apollo) |
Here you can see a wonderful Numitron clock, where that tube
was used
Made by Sal Brisindi
Check out his homepage here:
http://www.tuberadios.com/
http://www.tuberadios.com/numitron2/
http://www.tuberadios.com/numitron/
| Röhrendaten/ Tube Data | |||
| German | English | ||
| Typ | Type | DA-2000 | |
| Hersteller | Brand | Apollo | |
| Vergleichstypen | Substitudes | DR2000 | |
| Symbole | Displayed symbols | 7 Segment | |
| Symbolhöhe | Symbol height | 15mm (0.600") | |
| Abmessungen | Overall dimensions | 20.5mm (0.810") dia. X 47.7mm (1.875") tall | |
| Pindurchmesser | Pin diameter | 1.02mm (0.040") | |
| typ. Betriebsspannung | typ. supply voltage | V | 4.5 |
| typ. Strom pro Segment | typ. current per segment | mA | 24 |
| Sockel | Base | B9A, Pin 3 vorne/ pin 3 at front | |
| Fassung | Socket | B9A (=Noval) | |
Pinout:
Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung/ Arrow shows
direction of viewing
Outline:
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
