H1501 (Hitachi)
Nixie Röhre/Nixie Tube

A very rare and odd tube!



Röhrendaten/Tube Data
German English
Typ Type   H1501
Hersteller Brand   Hitachi
Vergleichstypen Substitutes   -

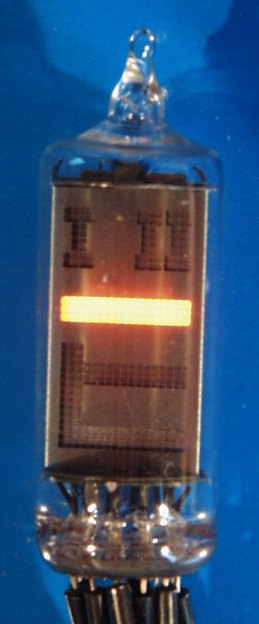

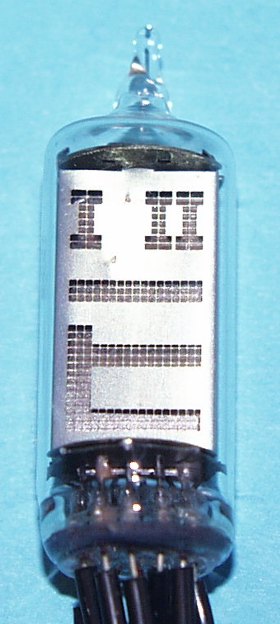

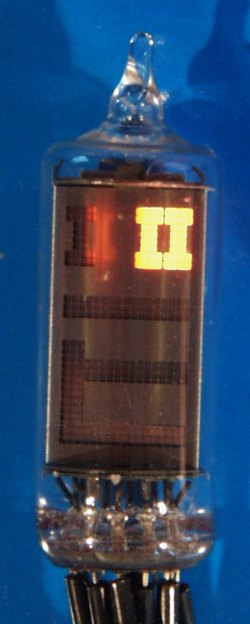

Symbole Displayed symbols   I, II, E, -
Symbolhöhe Symbol height   E: 10mm (0.4"); I, II: 4mm (0.16")
Abmessungen Overall dimensions   13mm (0.51") dia. X 37mm (1.45") tall
Pindurchmesser Pin diameter   0.4mm (0.016")
min. Betriebsspannung min. supply voltage V 200
typ. Brennspannung typ. maintaining Voltage V 150
Betriebs-
Kathodenstrom
Typical
cathode current
mA siehe Datenblatt!/see datasheet!
Sockel Base   "M7S-1"- Sockel. Drahtanschluss, 12 Drähte/
'M7S-1' Base, Wire connection, 12 wires
Fassung Socket   Drahtanschluss, keine Fassung erf./
Wire connection, no socket needed

Pinout:


Pin Anschluss/
Connection
1 internal connection
2 Cathode (II)
3 internal connection
4 Anode
5 internal connection
6 Cathode (I)
7 internal connection
8 Cathode (╘)
9 internal connection
10 Cathode (-)
11 internal connection
12 internal connection

Ansicht von unten/Bottom view
Pfeil zeigt Blickrichtung/Arrow shows direction of viewing!

Outline:

ignore the shown digit '5'!

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
