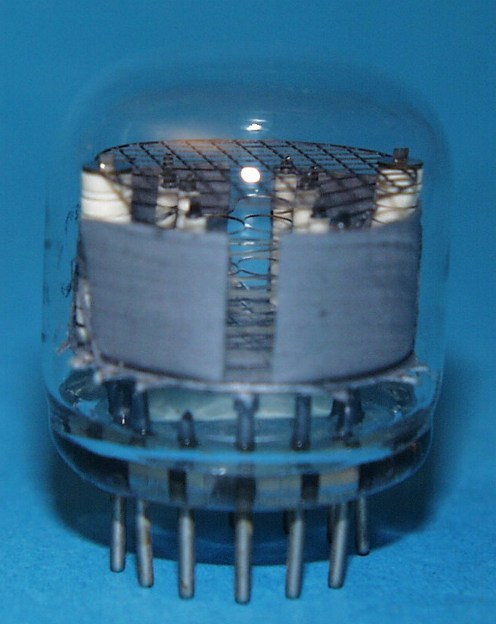

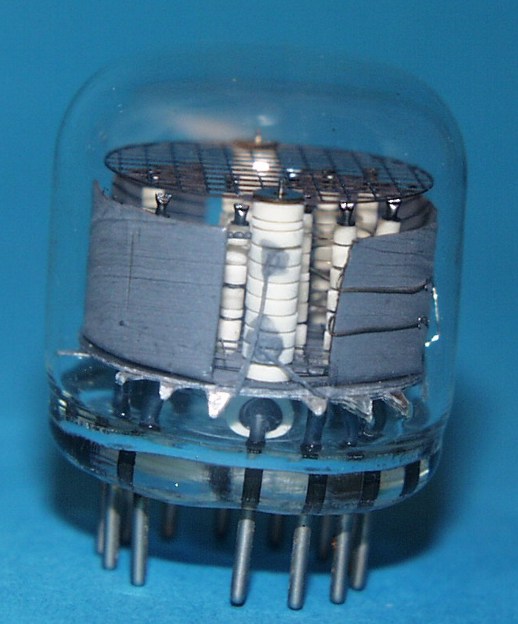

NL-5094 (National
Electronics) |
A rare and odd Nixie tube!
| Röhrendaten/ Tube Data | |||
| German | English | ||
| Typ | Type | NL-5094 | |
| Hersteller | Brand | National Electronics | |
| Vergleichstypen | Substitudes | 154-0326-00, B-5094 | |
| Symbole | Displayed symbols | M, µ, N [left], A, S, V [right] | |
| Symbolhöhe | Symbol height | 7mm (0.275") | |
| Abmessungen | Overall dimensions | 27.5mm (1.080") dia. X 35mm (1.375") tall | |
| Pindurchmesser | Pin diameter | 1.02mm (0.040") | |
| min. Betriebsspannung | min. supply voltage | V | 170 |
| typ. Brennspannung | typ. maintaining voltage | V | 150 |
|
Betriebs- Kathodenstrom |
typ. cahthode current | mA | 0.8 |
| Sockel | Base | B13B, Pin 8 oben/ B13B, pin 8 at top | |
| Fassung | Socket |
B13B oder Einlötbuchsen 1mm/ B13B or pin receptacles 1mm |
|
Pinout:
| Pin |
Anschluss/ Connection |
| 1 | not connected |
| 2 | Anode |
| 3 | Cathode (A) |
| 4 | not connected |
| 5 | Cathode (S) |
| 6 | not connected |
| 7 | Cathode (V) |
| 8 | not connected |
| 9 | Cathode (M) |
| 10 | not connected |
| 11 | Cathode (N) |
| 12 | not connected |
| 13 | Cathode (µ) |
(Pinout- graphic by Alan Franzman)
Ansicht von unten / Bottom view
Outline:
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
