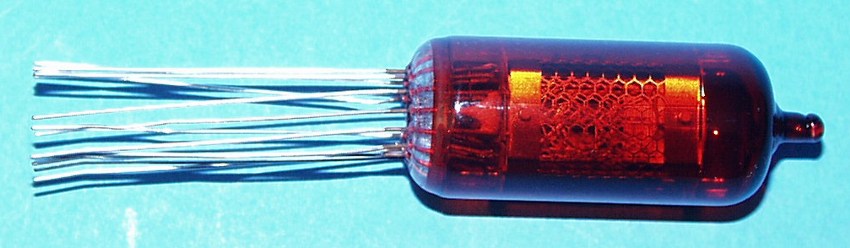

Z580M (RFT) |
Gleich wie Z5800M, nur mit Farbfilter/
Same as Z5800M but with filter coating.
Röhrendaten/ Tube Data | |||
German | English | ||
Typ | Type | Z580M | |
Hersteller | Brand | RFT | |
Vergleichstypen | Substitudes | Z5800M (ohne Filter/ without filter coating) | |
Symbole | Displayed symbols | T, G, M, k, m, µ, n, p | |
Symbolhöhe | Symbol height | 13mm (0.512") | |
Abmessungen | Overall dimensions | 19mm (0.750") dia. X 50mm (1.969") tall | |
Pindurchmesser | Pin diameter | 0.45mm (0.018") | |
min. Betriebsspannung | min. supply voltage | V | 170 |
typ. Brennspannung | typ. maintaining voltage | V | 140 |
Betriebs- Kathodenstrom |
typ. cahthode current | mA | 2 |
Sockel | Base |
B13D, Pin 7 vorne/ B13D, pin 7 at front |
|
Fassung | Socket |
Drahtanschluss, keine Fassung erf./ Wire connection, no socket needed |

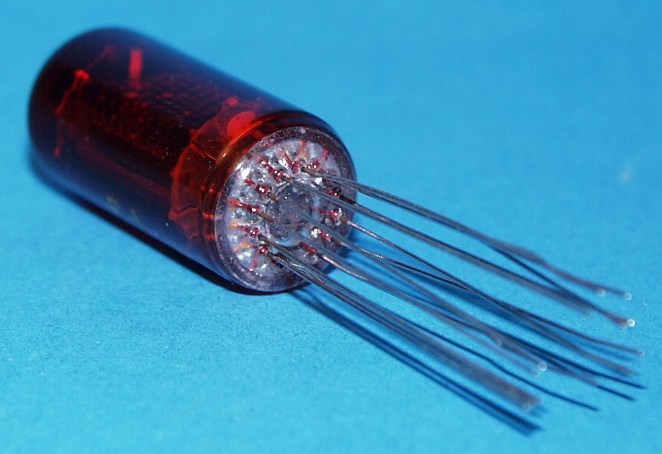

Pinout/ Outline:
Ansicht von unten / Bottom
view
Pfeil zeigt Blickrichtung! / Arrow shows
direction of viewing!
Weitere Daten:
Typ | RFT | ||
mit Farbfilter | Z580M | ||
ohne Farbfilter | Z5800M | ||
Kenndaten | |||
Zündspannung | Uz | V | 150 |
Brennspannung | Uarc | V | 140 |
Löschspannung | Ulösch | V | 120 |
Kathodenstrom | Ik | mA | 2 |
Kathodenstrom | Ik mittel | mA | |
bei Impulsbetrieb | |||
Grenzdaten | |||
Speisespannung | Ub | V | 170 |
min.Kathodenstrom | Ik min | mA | 1,5 |
max. Kathodenstrom | Ik max | mA | 2,5 |
max. Kathodenspitzenstrom | Ik sp max | mA | 12 |
Kolbentemperatur | tkolb | °C | -50 bis +70 |
Fassungen | |||
Kolbenabmessungen | |||
max.Höhe | mm | 50 | |
max.Durchmesser | mm | 19 |
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
