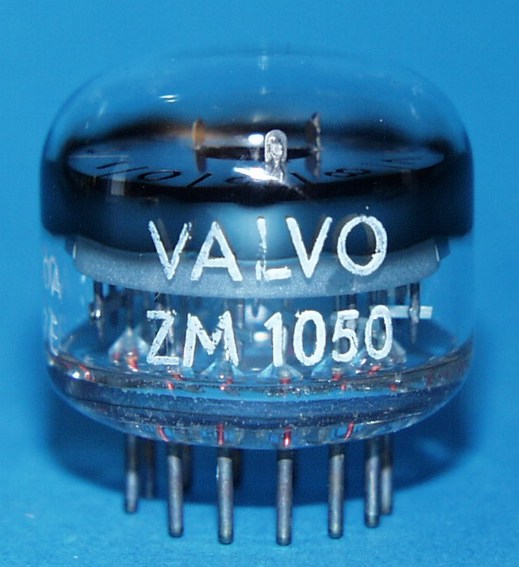

ZM1050 (Valvo) |
| Röhrendaten/Tube Data | |||
| German | English | ||
| Typ | Type | ZM1050 | |
| Hersteller | Brand | Valvo | |
| Vergleichstypen | Substitutes | 8453, Z550M | |
| Symbole | Displayed symbols | 0-9 | |
| Symbolhöhe | Symbol height | 3mm (0.118") | |
| Abmessungen | Overall dimensions | 28.5mm (1.12") dia. X 31mm (1.22") tall | |
| Pindurchmesser | Pin diameter | 1.02mm (0.040") | |
| typ. Brennspannung | typ. maintaining voltage | V | 84 |
|
Betriebs- Kathodenstrom |
typ. cathode current | mA | 3 |
| Sockel | Base | B13B, Pin 1 oben/pin 1 at top | |
| Fassung | Socket | B13B | |
Pinout/ Outline:
Pinout: Ansicht von unten / Bottom view.
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
