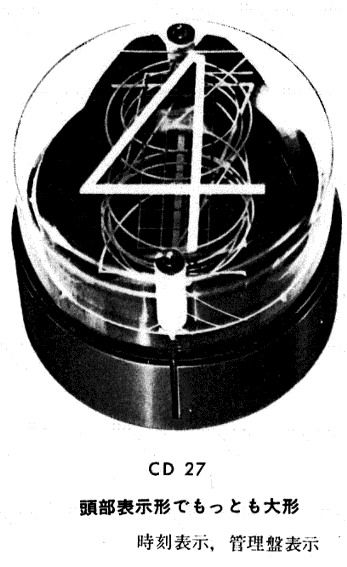

| CD27/GR-401 (Rodan) Nixie Röhre/ Nixie Tube |
WER HAT
MEHR VON DIESEN RÖHREN??? BITTE EMAIL AN MICH!
Drawing:
Socket/ Base:
Pinout- Ansicht
von unten / Pinout- Bottom
View
Pfeil zeigt Blickrichtung / Arrow
shows direction of viewing!
Connection |
Tube Pin |
Tube Pin |
Connection |
|
Anode |
12 |
1 |
1 |
|
0 |
10 |
2 |
2 |
|
1 |
1 |
3 |
3 |
|
2 |
2 |
4 |
4 |
|
3 |
3 |
5 |
5 |
|
4 |
4 |
6 |
6 |
|
5 |
5 |
7 |
7 |
|
6 |
6 |
8 |
8 |
|
7 |
7 |
9 |
9 |
|
8 |
8 |
10 |
0 |
|
9 |
9 |
11 |
NC |
|
NC |
11 |
12 |
Anode |
Röhrendaten/ Tube Data:
| Röhrendaten/ Tube Data | |
| Brand: | Rodan |
| Manufacturer: | Okaya Electric Industries Company, Limited |
| Made in: | Tokyo, Japan |
| Tube Type: | CD27/GR-401 |
| Overall Height: | 86mm including pins and center post |
| Diameter Base: | 72mm (2.83") |
| Digit Height: | 54mm tall numerals 0-9 |
| Base: | B12A (Duodecal Base) |
| Displayed Symbols: | 0-9 |
| Min. Supply: | 200V |
| Min. Ionization: | 200V |
| Typical maint. Volt. | 170V |
| Min. Cathode Curr. | 7.5mA |
| Typ. Cathode Curr. | 10mA |
| Max. Cathode Curr. | 12,5mA |
| Nuber of Pins: | 12 |
| Pin Diameter | 2.36mm (= 0.093") |
| Pin Circle: | 27mm (= 1.063") |
| Pin Spacing: | 30° |
| Pin Length: | 11.1 mm |
| Spigot: | 15.5mm (0.610") dia. Splined Center Spigot |
| Aligment Method: | Spline in Front |
