B13B (Elrado)
Nixie Fassung/ Socket

This socket can be PCB-mounted or chassis mounted.

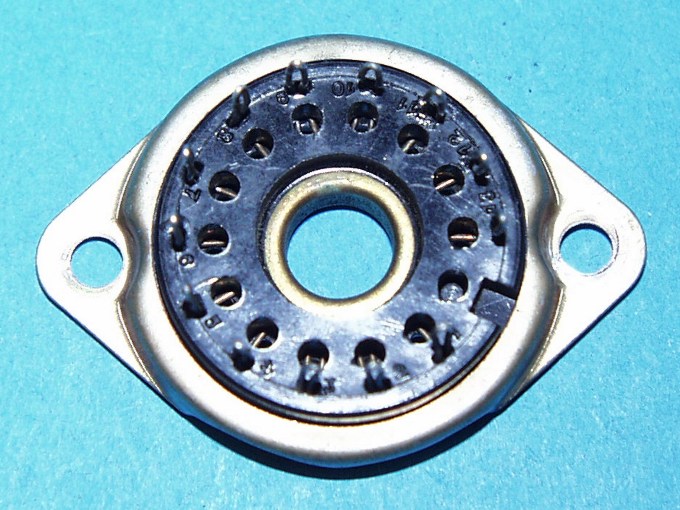

B13B Sockel- Beispiel/
B13B Base example:

Pinout:

Pinout graphic by Alan Franzman
Ansicht von unten / Bottom view

Physical Characteristics:

German English
Anzahl der Pins Number of Pins 13
Pinkreis- Durchmesser Pin Circle Diameter 16.7mm (0.656")
Pin- Durchmesser Pin Diameter 1.02mm (0.040")
Pin- Abstand Pin Spacing 25.7°
Andere Namen für diesen Sockel Aliases 13-Pin All Glass, 13-17, 2422 505 00001, 2422 505 00002, B8 700 67, B8 700 69, B8 702 28, HSK-106, HSK-112, M-111 ?, RTS-1, RTS-2, RTS-6, RTS-8, RTS-9, SK-106, SK-109, SK-112, SK-120, SK-124, SK-125, SK-128, SK-130, SK-135, TSB-13P, VH13/131

This tube sockets fit for the following Nixie and readout tubes (examples!):

5092; 5092A; 6844A; 7153; 7978; 8037; 8353; 8421; 8423; 8453; B-50113; B-5016; B-5018; B-5031; B-50317; B-50317B; B-50318; B-5032; B-50325; B-50347; B-5037; B-50911; B-5092; B-5092-A ; B-5094; B-50944; B-6012; B-6032; B-6033; B-6034; B-6036; B-6037; B-6091; B-6844A; B-7153; BD-206; BD-214; BD-216; BD-221; BD-225; BD-302; BD-310; BIP 8212S ; CD102; CD24; CD26; CD57; CK6844A; CK7978; CK8037; CK8421; CV5238; CV5278; CV9316; CV9732; F9057; F9057AA; GA1; GA2; GN-3; GN-4; GN-4A; GN-4D; GN-4P; GNP-4A; GR10M; GR7M; GR7M/U; GS4; GS4A; HB-106; JAN-6844A; JAN-8037; JAN-8421; JAN-8423; JAN-CB-6844A; JAN-CZ-6844A; LC-511; LC-513; LC-513A; LL-553; M2726-102500; M2726-102600; NE-50347; NL-5016; NL-5032 ; NL-50325; NL-50347; NL-50911; NL-5094 ; NL-6844A; NL-7153; NL-8037; NL-8421; NL-8423; NL-883 ; NUP 118; Z504S; Z505S; Z510M; Z520M; Z5220M; Z522M; Z550M; Z5600M; Z560M; Z5610M; Z561M; Z562S; Z5660M; Z566M; Z5670M; Z567M; ZM1020; ZM1020/01 ; ZM1021 ; ZM1022; ZM1022p ; ZM1023 ; ZM1024; ZM1025; ZM1028; ZM1040; ZM1041; ZM1042; ZM1042/01; ZM1043; ZM1050; ZM1060.
and many others!
