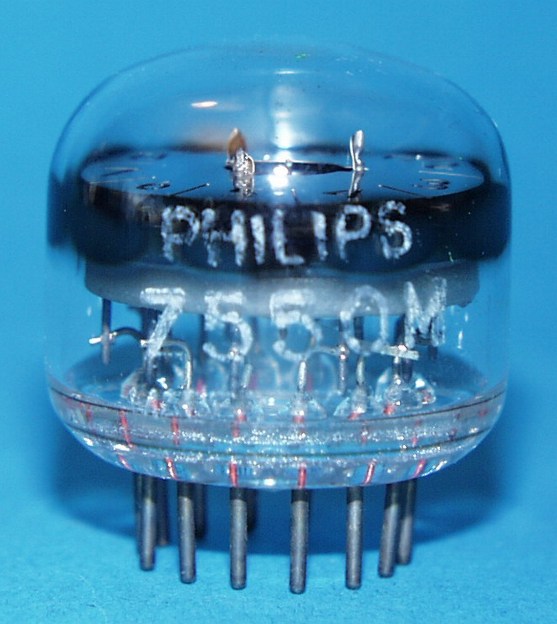

Z550M (Philips)
Pixie Röhre/ Pixie Tube

Röhrendaten/ Tube Data
German English
Typ Type   Z550M
Hersteller Brand   Philips
Vergleichstypen Substitudes   8453, ZM1050

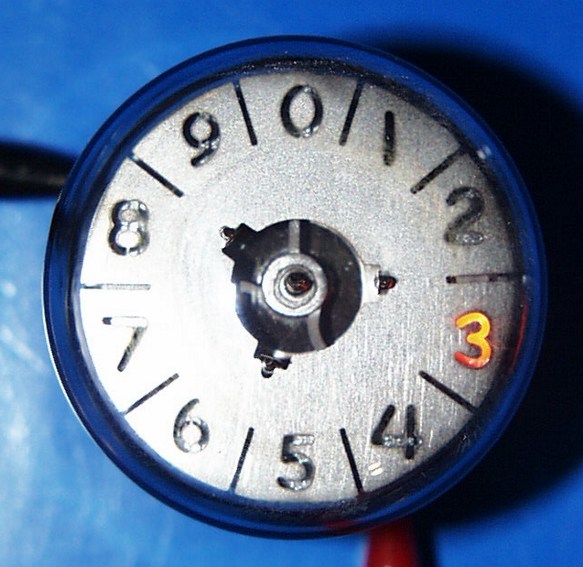

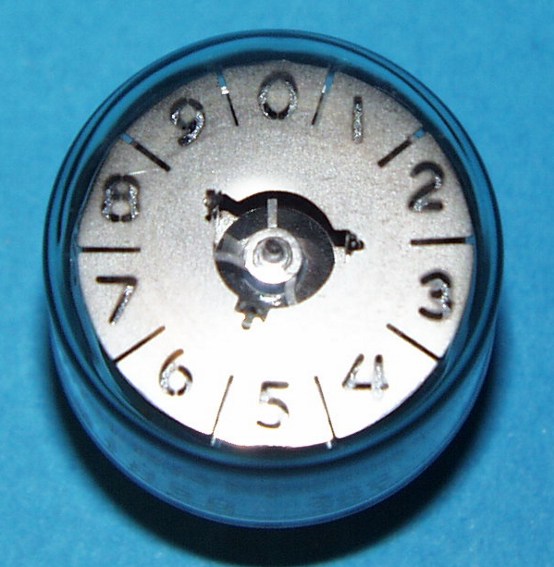

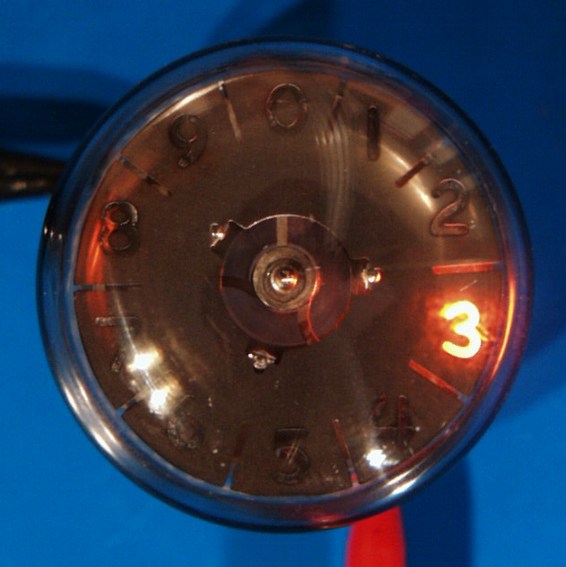

Symbole Displayed symbols   0-9
Symbolhöhe Symbol height   3mm (0.118")
Abmessungen Overall dimensions   28.5mm (1.12") dia. X 31mm (1.22") tall
Pindurchmesser Pin diameter   1.02mm (0.040")
typ. Brennspannung typ. maintaining voltage V 84
Betriebs-
Kathodenstrom
typ. cahthode current mA 3
Sockel Base   B13B, Pin 1 oben/ pin 1 at top
Fassung Socket   B13B oder Einlötbuchsen 1mm/
B13B or pin receptacles 1mm

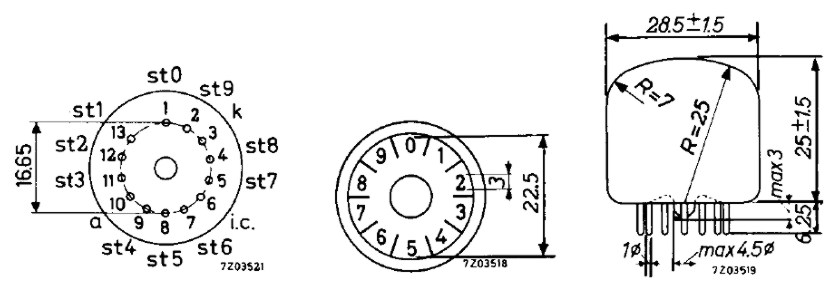

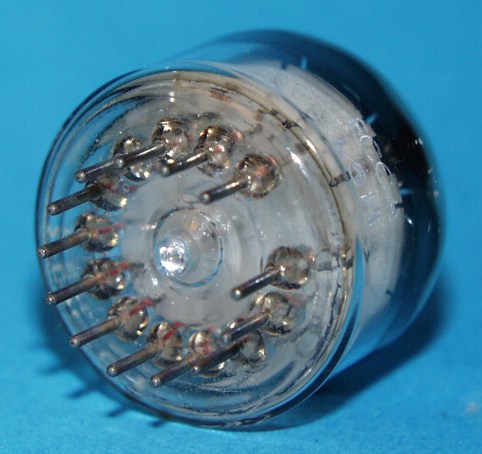

Pinout/ Outline:

Pinout: Ansicht von unten / Bottom view

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
