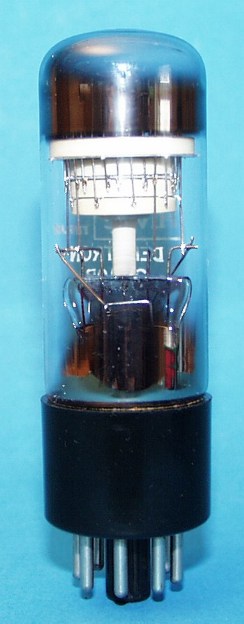

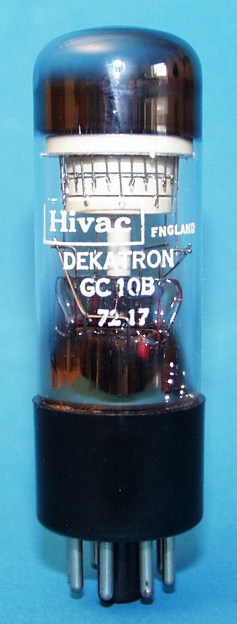

GC10B (Hivac)
Dekatron counting tube

Bi-directional double-pulse decimal counting/selector tube.
Neon filled.

The following pictures show the tube spinning.
Of course, only one of the cathodes is glowing, but the opening time of the camera leads to that different pictures:

a middle opening time of the camera:

a short opening time of the camera:

a long opening time of the camera:

by night, with  long opening time of the camera:

An animation of a spinning dekatron:

German English
Röhrentyp Tube type   GC10B
Hersteller Brand   Hivac
Vergleichstypen Substitutes   GC10B/S, CV2271, Z303C
Zähl- Richtung Counting direction   bidirectional
Arbeitsweise Operation   double pulse
Art Sort   counting & selector tube

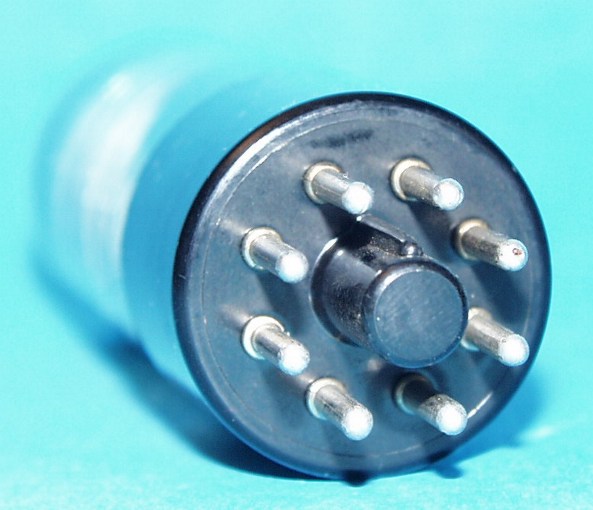

Sockel Base   K8A
Fassung Socket   K8A
Nullposition Zero position   Pin 6
Zähl- Schritte Counting steps   10
Anzahl der Hilfskathoden Number of guides   2
Gasfüllung Gas filling   Neon
Röhrendurchmesser maximal Tube diameter max. mm 29,5
Röhrenhöhe maximal Tube height max. mm 103,25

max. Zähl- Geschwindigkeit max. counting speed kHz 4
Betriebsspannung minimal Supply volt. min. V 350
Betriebsspannung typisch Supply volt. typ. V 475
Brennspannung minimal Maintaining voltage min. V 186
Brennspannung typisch Maintaining voltage typ. V 191
Brennspannung maximal Maintaining voltage max. V 196
Anoden bzw. Kathodenstrom min. Anode/cath. current min. µA 250
Anoden bzw. Kathodenstrom typ. Anode/cath. current typ. µA 310
Anoden bzw. Kathodenstrom max. Anode/cath. current max. µA 550
Netzteil Leistung minimal Power supply power min. mW 147,25
Anodenwiderstand typisch Anode resistor typical 820
Spannungsdifferenz zw. 2 Kath. max. Voltage between 2 cathodes max. V 140
Hilfskathodenvorspannnung minimal Guide bias volt. min. V 35
Hilfskathodenvorspannnung Impulsbetrieb typ. Guide bias typ pulse op. V 18
Hilfskathodenvorspannnung Sinusbetrieb typ. Guide bias typ sine op. V 10
Hilfskathodenimpulsspannung Guide signal voltage pulse Vp -145+/-15
Hilfskathodenimpulsspannung eff. (Sinus) Guide signal voltage eff. (sine) Veff 40-70
Hilfskathodenimpulsdauer minimal Guide signal pulse duration min µs 80
Kathodenwiderstand typisch Cathode resistor typical 120
Kathodenwiderstand maximal Cathode resistor max. 150
Ausgangsspannung Output voltage V 25-40 (35)
Resetimpulsspannung Reset pulse voltage min. V -120

Anschlussbelegung: Pinout:
PIN 01 PIN 01   K1-9
PIN 02 PIN 02   NC
PIN 03 PIN 03   G1
PIN 04 PIN 04   A
PIN 05 PIN 05   G2
PIN 06 PIN 06   NC
PIN 07 PIN 07   K0
PIN 08 PIN 08   NC

Pinout & Outline:

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
