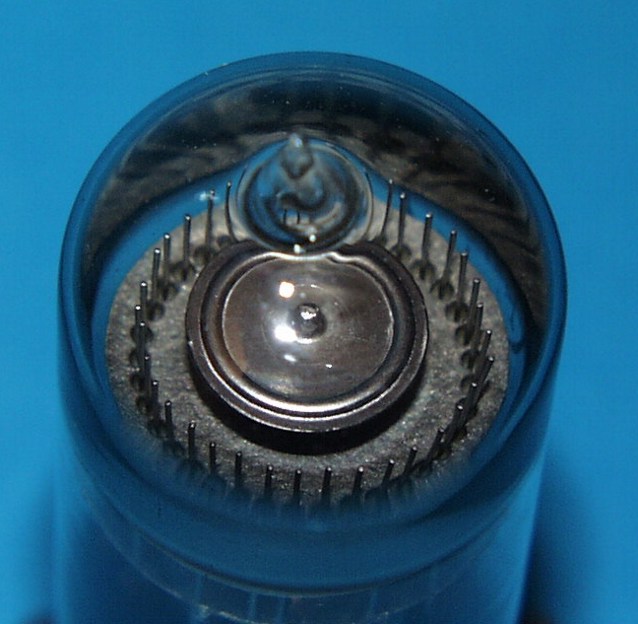

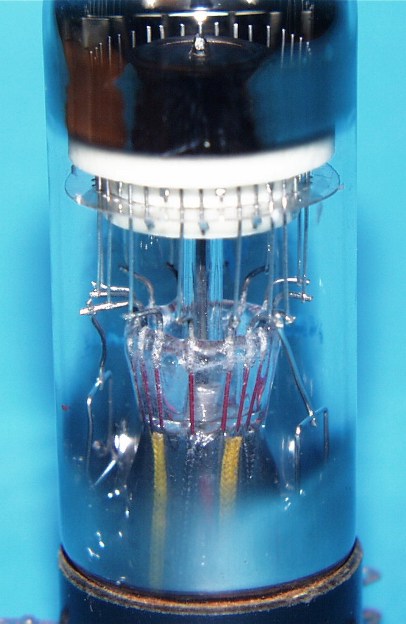

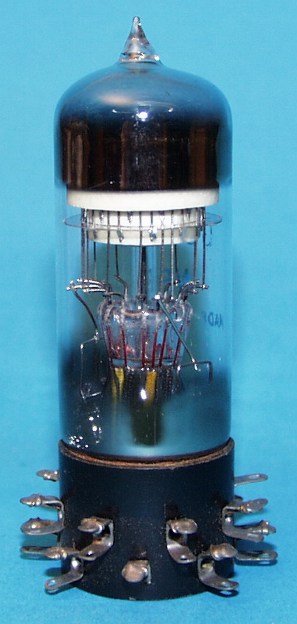

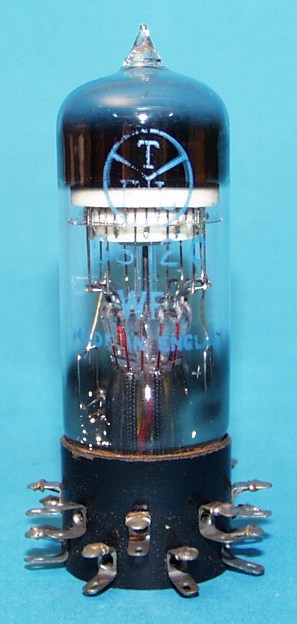

GS12C (ETL)
Dekatron style counting tube

Bi-directional double-pulse duodecal (12-position) counting/ selector tube.
Rare maintanance type!

Neon filled.

The following pictures show the tube spinning.
Of course, only one of the cathodes is glowing, but the opening time of the camera leads to that different pictures:

a short opening time of the camera:

a long opening time of the camera:

An animation of a spinning dekatron:

German English
Röhrentyp Tube type   GS12C
Hersteller Brand   ETL
Vergleichstypen Substitudes   CV1740
Zähl- Richtung Counting direction   bidirectional
Arbeitsweise Operation   double pulse
Art Sort   counting & selector tube
Sockel Base   16 solder tags on phenolic tube
Nullposition Zero position   between tag 2 and 3
Zähl- Schritte Counting steps   12
Anzahl der Hilfskathoden Number of guides   2
Gasfüllung Gas filling   Neon
Röhrendurchmesser maximal Tube diameter max. mm 29.5
Röhrenhöhe maximal Tube height max. mm 96

max. Zähl- Geschwindigkeit max. counting speed kHz 4
Betriebsspannung minimal Supply volt. min. V 350
Betriebsspannung typisch Supply volt. typ. V 475
Brennspannung typisch Maintaining voltage typ. V 192
Anoden bzw. Kathodenstrom min. Anode/ cath. current min. µA 250
Anoden bzw. Kathodenstrom typ. Anode/ cath. current typ. µA 325
Anoden bzw. Kathodenstrom max. Anode/ cath. current max. µA 550
Netzteil Leistung minimal Power supply power min. mW 155
Anodenwiderstand typisch Anode resistor typical 680
Spannungsdifferenz zw. 2 Kath. max. Voltage between 2 cathodes max. V 140
Hilfskathodenvorspannnung Impulsbetrieb typ. Guide bias typ pulse op. V 36
Hilfskathodenimpulsspannung Guide signal voltage pulse Vp -145
Hilfskathodenimpulsdauer minimal Guide signal pulse duration min µs 80
Kathodenwiderstand maximal Cathode resistor max. 270
Resetimpulsspannung Reset pulse voltege min. V -120

Anschlussbelegung: Pinout:
Lötfahne 01 Tag 01   Anode
Lötfahne 02 Tag 02   not connected
Lötfahne 03 Tag 03   K0
Lötfahne 04 Tag 04   K11
Lötfahne 05 Tag 05   K10
Lötfahne 06 Tag 06   K9
Lötfahne 07 Tag 07   K8
Lötfahne 08 Tag 08   K7
Lötfahne 09 Tag 09   G2
Lötfahne 10 Tag 10   K6
Lötfahne 11 Tag 11   K5
Lötfahne 12 Tag 12   K4
Lötfahne 13 Tag 13   G1
Lötfahne 14 Tag 14   K3
Lötfahne 15 Tag 15   K2
Lötfahne 16 Tag 16   K1

Outline:

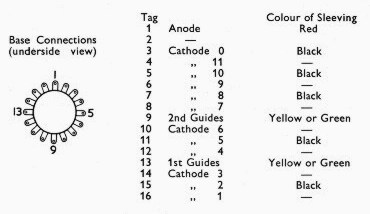

Pinout:

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
