1970-0038 NL-989 (National Electronics)
Nixie Röhre/ Nixie Tube

Röhrendaten/ Tube Data
German English
Typ Type   1970-0038 NL-989
Hersteller Brand   National Electronics
Vergleichstypen Substitudes   1970-0038, NL-989, B-5449 ?

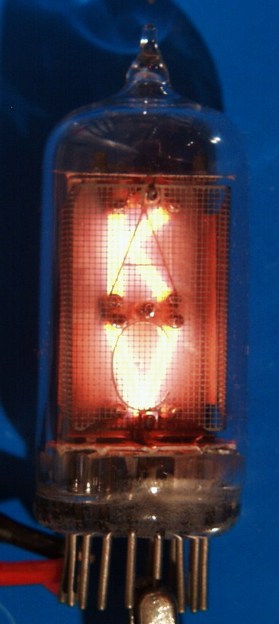

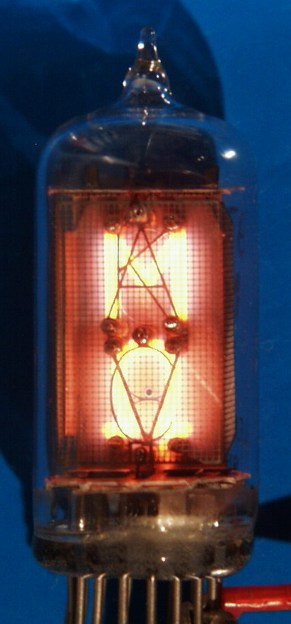

Symbole Displayed symbols   A, K, M [top], C, V, Ω, PL, PR [bottom]
Symbolhöhe Symbol height   8mm (0.315")

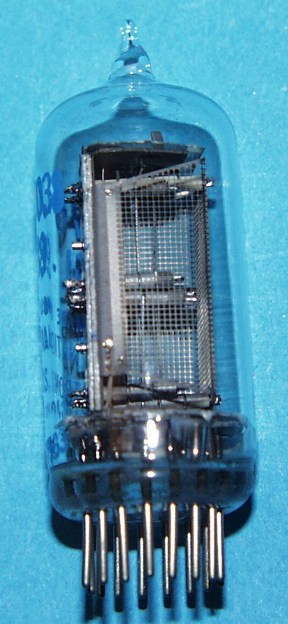

Abmessungen Overall dimensions   19mm (0.75") dia. X 52mm (2.05") tall
Pindurchmesser Pin diameter   0.76mm (0.030")
min. Betriebsspannung min. supply voltage V 170
typ. Brennspannung typ. maintaining voltage V 145
Betriebs-
Kathodenstrom		 typ. cahthode current mA 1
Sockel Base   SK-182, pin 8 und 9 vorne/
SK-182, pin 8 and 9 in front
Fassung Socket   SK-182 oder Einlötbuchsen 0.8mm/
SK-182 or pin receptacles 0.8mm

Pinout:


Pin Anschluss/
Connection
1 Cathode (A)
2 Cathode (K)
3 Anode
4 Cathode (C)
5 IC
6 Cathode (PL)
7 IC
8 IC
9 Cathode (V)
10 IC
11 Cathode (PR)
12 Cathode (Ω)
13 Cathode (M)
14 Anode
15 IC
16 IC

(Pinout- graphic by Alan Franzman)
Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung / Arrow shows direction of viewing!
