5866STX (ITT) Nixie Röhre/ Nixie Tube

Röhrendaten/ Tube Data
German English
Typ Type   5866STX
Hersteller Brand   ITT
Vergleichstypen Substitudes   58GSST, NL-5866STX

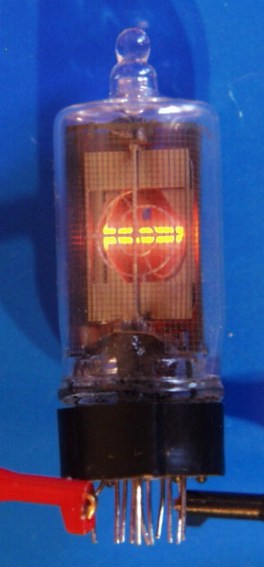

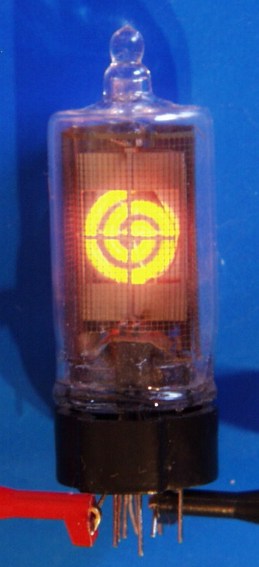

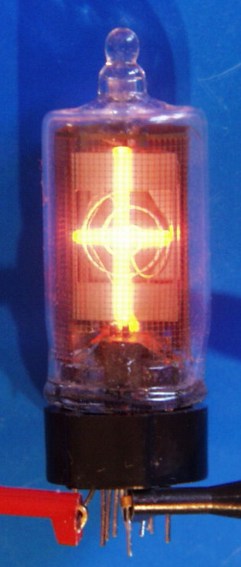

Symbole Displayed symbols   +, −, ~, Spiral
Symbolhöhe Symbol height   13mm (0,512")
Abmessungen Overall dimensions   13mm (0,512") dia, X 34mm (1,34") tall
Pindurchmesser Pin diameter   0.45mm (0.018")
min. Betriebsspannung min. supply voltage V 170
typ. Brennspannung typ. maintaining voltage V 140
Betriebs-
Kathodenstrom
typ. cahthode current mA 2
Sockel Base   SK-207
Fassung Socket   Drahtanschluss, keine Fassung erf./
Wire connection, no socket needed

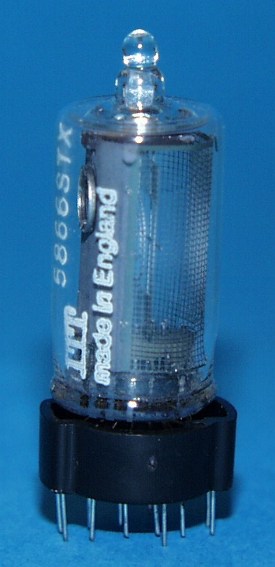

Outline:

Pinout:

Ansicht von unten / Bottom view


Pin Anschluss/
Connection
1 Kathode (-)
2 Kathode (~)
3 Kathode (Spiral)
4 IC
5 IC
6 Kathode (+)
7 Anode
8 IC
9 IC
10 No pin
11 IC
12 IC
13 No pin
14 No pin

(Pinout- graphic by Alan Franzman)

Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung / Arrow shows direction of viewing!
