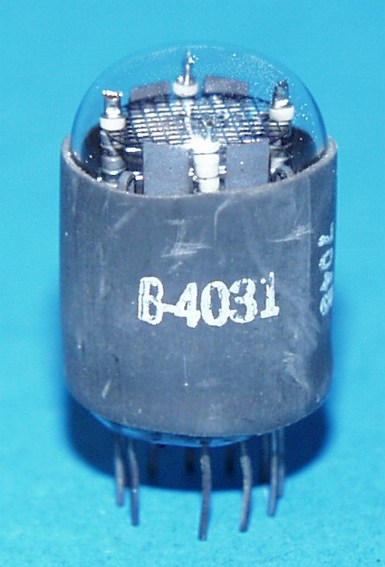

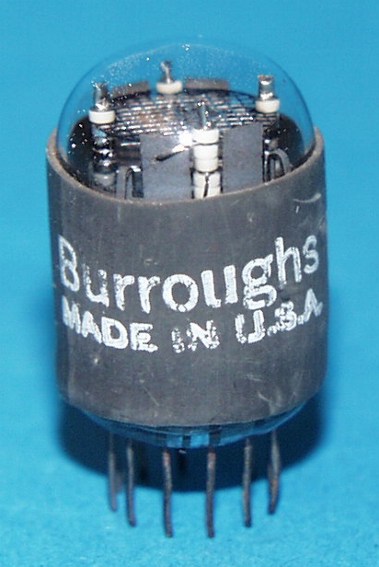

B-4031 (Burroughs) |
Sehr klein, selten! Gleich wie B-4022/
Very tiny, rare! Same as B-4022

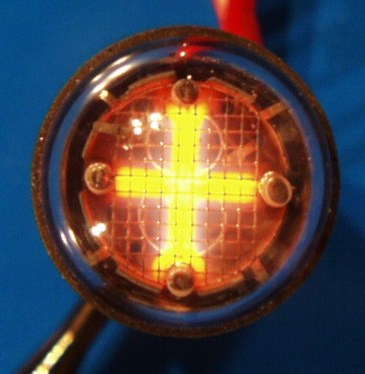

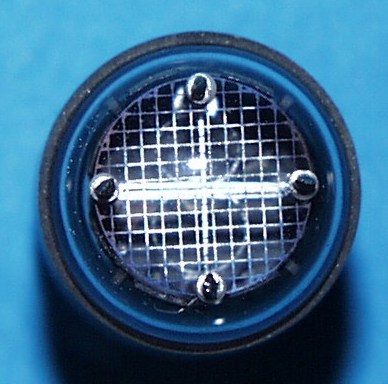

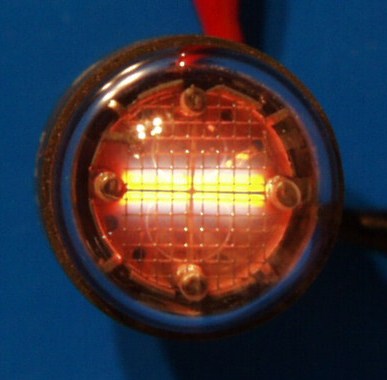

| Röhrendaten/ Tube Data | |||
| German | English | ||
| Typ | Type | B-4031 | |
| Hersteller | Brand | Burroughs | |
| Vergleichstypen | Substitudes | 4031, B-4022, B-4028, B-4031, NL-4031 | |
| Symbole | Displayed symbols | +, – | |
| Symbolhöhe | Symbol height | 7.75mm (0.305") | |
| Abmessungen | Overall dimensions | 17mm (0.680") dia. X 24mm (0.940") tall | |
| Pindurchmesser | Pin diameter | 0.45mm (0.018") | |
| min. Betriebsspannung | min. supply voltage | V | 170 |
| typ. Brennspannung | typ. maintaining voltage | V | 154 |
|
Betriebs- Kathodenstrom |

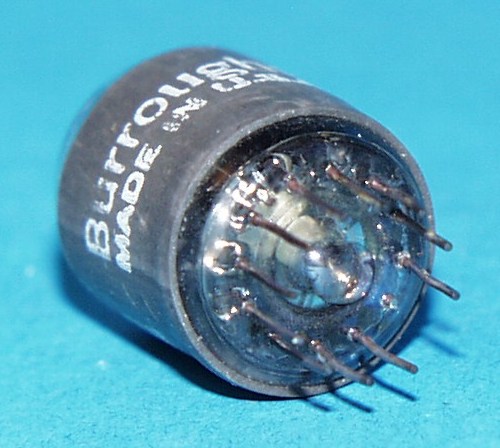

typ. cahthode current | mA | 1 |
| Sockel | Base |
SK-116, Pin 7 oben/ SK-116, pin 7 at top |
|
| Fassung | Socket |
SK-116 oder Einlötbuchsen 0.45mm/ SK-116 or pin receptacles 0.45mm |
|
Pinout:
| Pin |
Anschluss/ Connection |
| 1 | IC |
| 2 | IC |
| 3 | IC |
| 4 | IC |
| 5 | IC |
| 6 | Cathode (+) |
| 7 | IC |
| 8 | IC |
| 9 | Cathode (-) |
| 10 | IC |
| 11 | Anode |
(Pinout graphic by Alan Franzman)
Ansicht von unten / Bottom view
Pfeil zeigt nach oben/ Arrow points away from tube
outline indicating top of symbols!

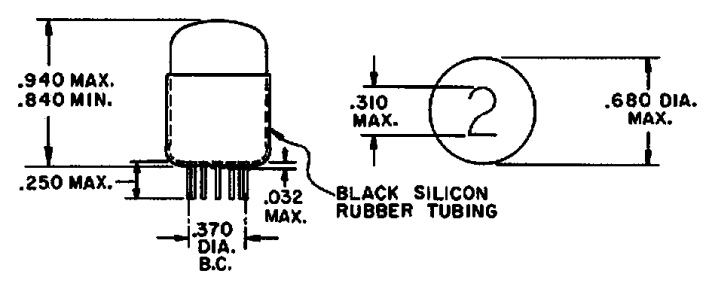

Outline:
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
