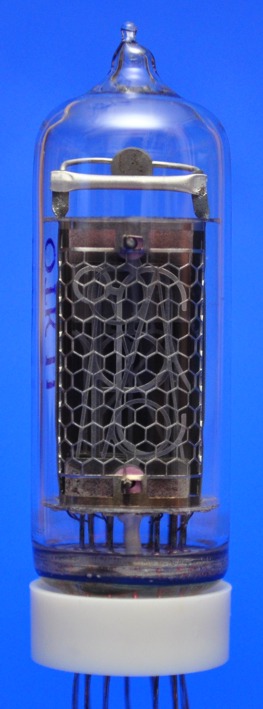

IN-19A (ИН-19А)
Nixie Röhre/Nixie Tube
Made by Газотрон, Ровно, Украина (Gazotron, Rovno, Ukraine)

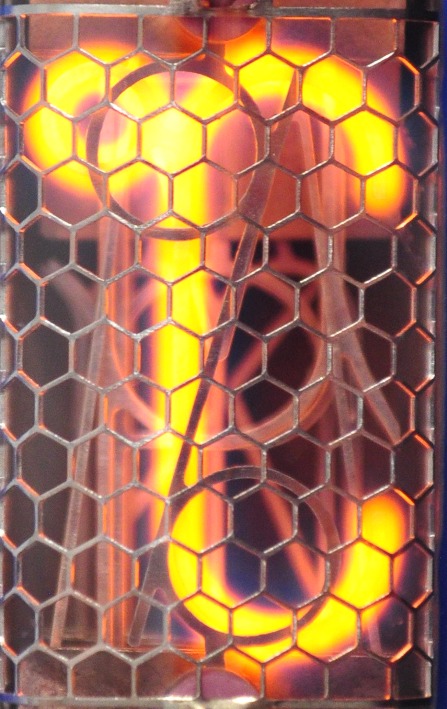

Die legendäre Nixie Röhre mit °C/
The legendary Nixie tube with the °C

TO BUY THESE TUBES CLICK HERE!!!

Röhrendaten/Tube Data
German English
Typ Type   IN-19A (ИН-19А)
Hersteller Brand   Газотрон (Gazotron Tube Factory, Rovno, Ukraine)
Vergleichstypen Substitutes   -

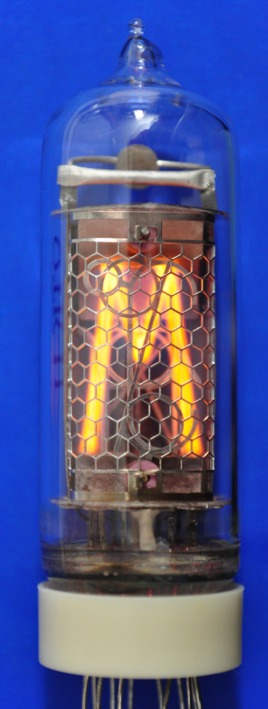

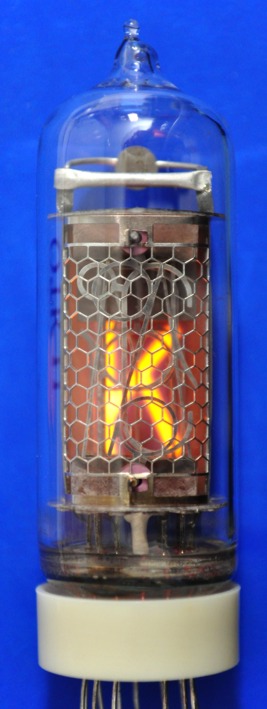

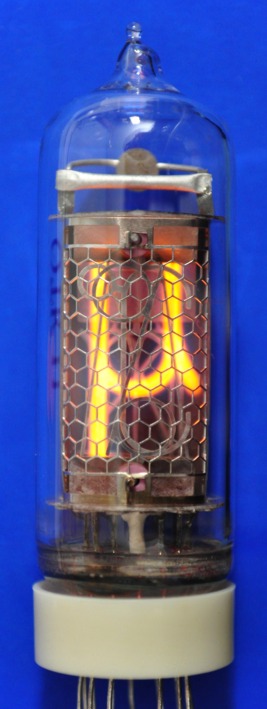

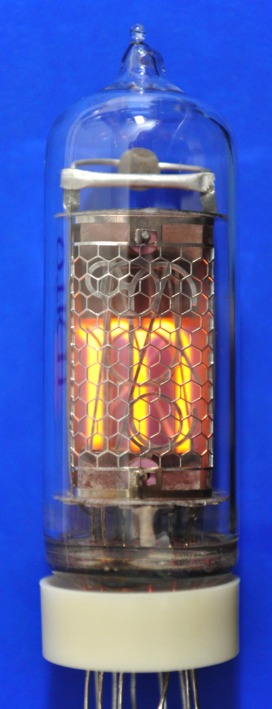

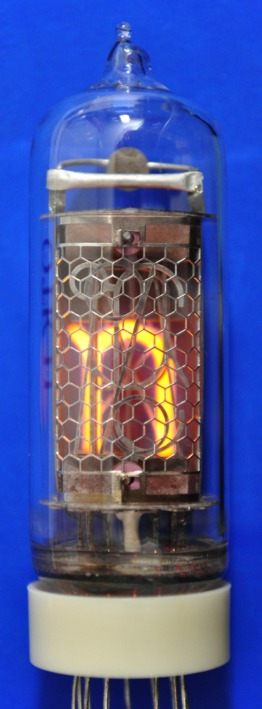

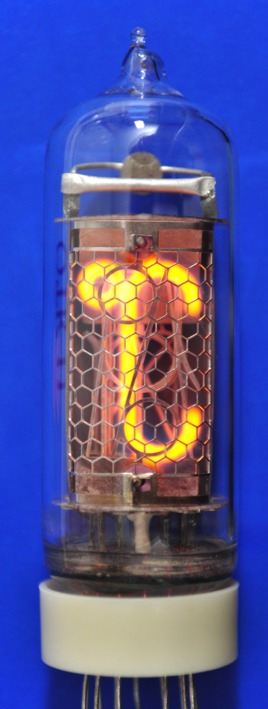

Symbole Displayed symbols   К, М, Р, m, µ, n, %, °С
Symbolhöhe Symbol height   18mm (0.709")
Abmessungen Overall dimensions   19mm (0.748") dia. X 55mm (2.165") tall
Pindurchmesser Pin diameter   0.5mm (0.020")
min. Betriebsspannung min. supply voltage V 170
typ. Brennspannung typ. maintaining voltage V 145
Betriebs-Kathodenstrom Typical cathode current mA 2

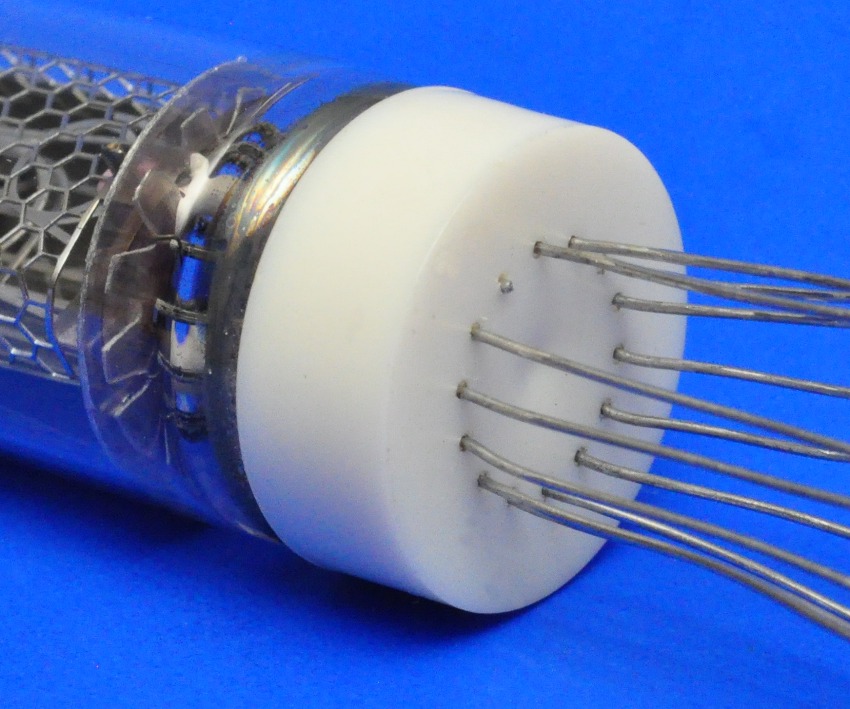

Sockel Base   14 Drähte, 35mm lang, Pin 1 zeigt nach vorne/
14 Wires, 35mm (1.38") long, pin 1 at front
Fassung Socket   Drahtanschluss, keine Fassung erf./
Wires, no socket needed

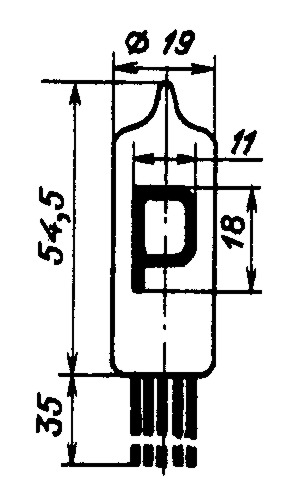

Outline/Pinout:


Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung /
Arrow shows direction of viewing!

Pin Anschluss/
Connection
1 no connection
2 Cathode (%)
3 no connection
4 Cathode (М)
5 Cathode (Р)
6 Cathode (m)
7 no connection
8 Anode
9 no connection
10 Cathode (К)
11 Cathode (n)
12 Cathode (µ)
13 no connection
14 Cathode (°С)

  Downloads/Datasheets:
Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.


Sie finden diese Röhren hier zum Kauf!/
You'll find these tubes here for sale!
