NL-50325 (National
Electronics) |

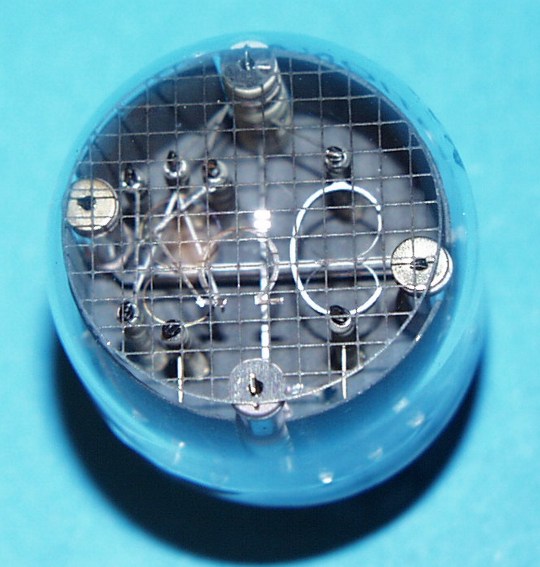

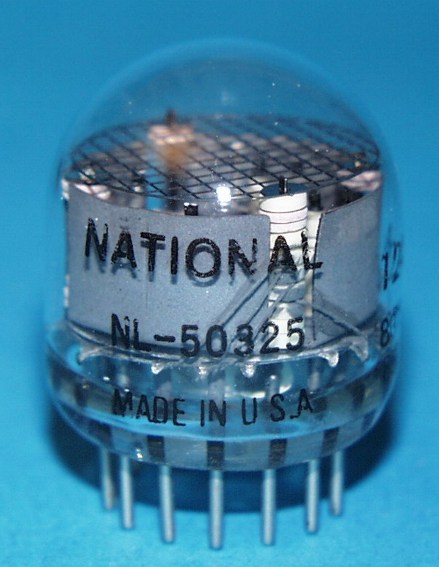

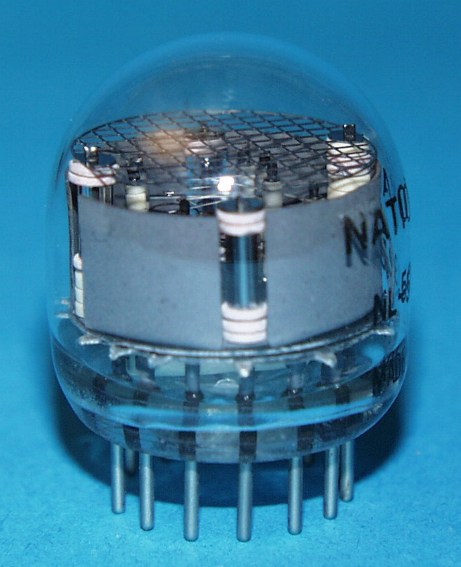

A rare and odd Nixie tube!
| Röhrendaten/ Tube Data | |||
| German | English | ||
| Typ | Type | NL-50325 | |
| Hersteller | Brand | National Electronics | |
| Vergleichstypen | Substitudes | B-50325 | |

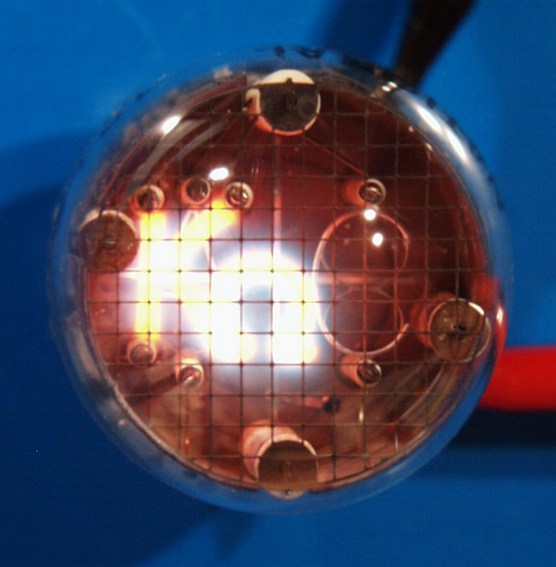

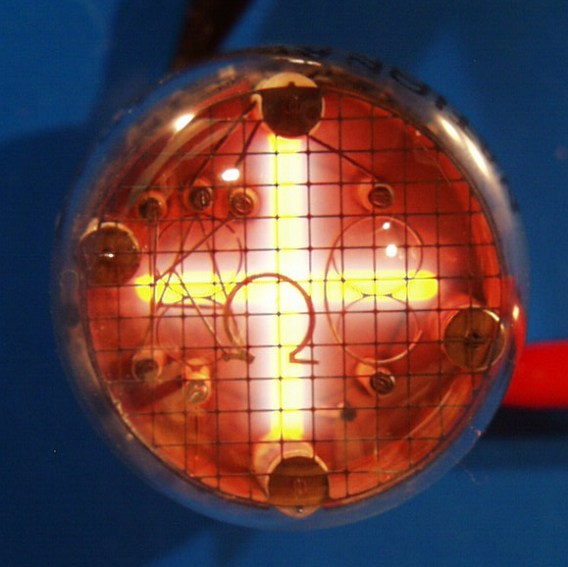

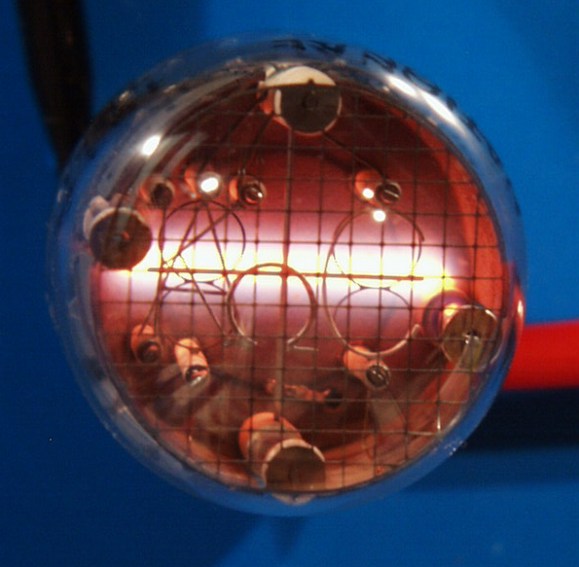

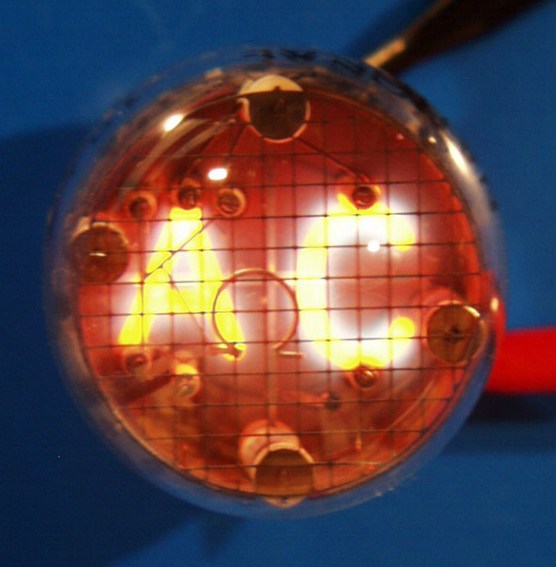

| Symbole | Displayed Symbols | AC, KΩ, +, − | |
| Symbolhöhe | Symbol Height | 15,5mm (0,610") | |
| Abmessungen | Dimensions | 26mm (1,024") dia, X 28,5mm (1,122") tall | |
| Pindurchmesser | Pin Diameter | 1.02mm (0.040") | |
| min. Betriebsspannung | min. Supply Voltage | V | 170 |
| typ. Brennspannung | typ. maintaining Voltage | V | 147 |
|
Betriebs- Kathodenstrom |
Typical Cahthode Current |
mA | 2.25 |
| Sockel | Base | B13B, Pin 1 vorne/ pin 1 at front | |
| Fassung | Socket | B13B | |
Pinout:
| Pin |
Anschluss/ Connection |
| 1 | internal connection |
| 2 | Anode |
| 3 | not connected |
| 4 | not connected |
| 5 | not connected |
| 6 | Cathode (KΩ) |
| 7 | Cathode (AC) |
| 8 | internal connection |
| 9 | not connected |
| 10 | Cathode (+) |
| 11 | not connected |
| 12 | Cathode (-) |
| 13 | not connected |
(Pinout- graphic by Alan Franzman)
Ansicht von unten / Bottom view
