NL-816 (National
Electronics) |

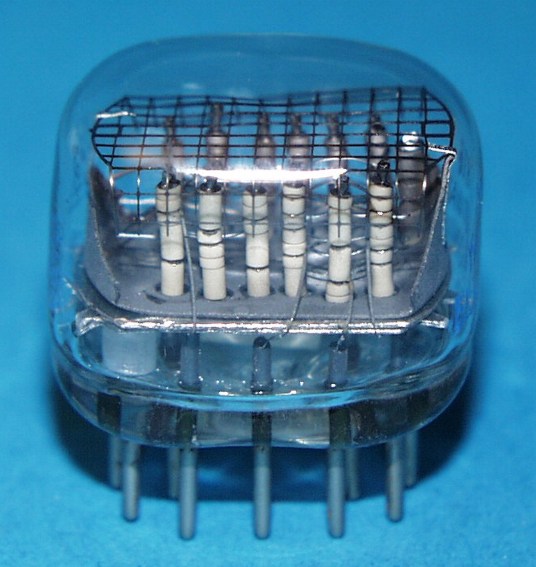

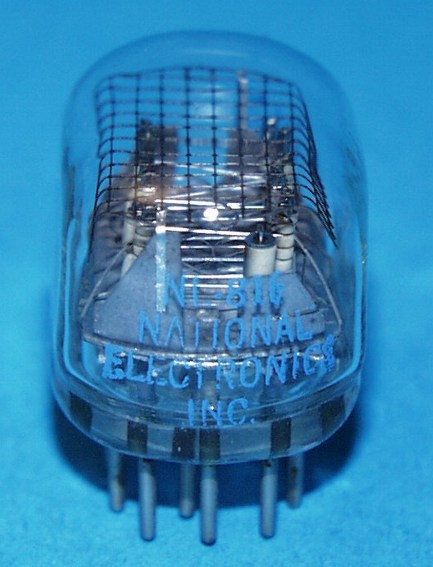

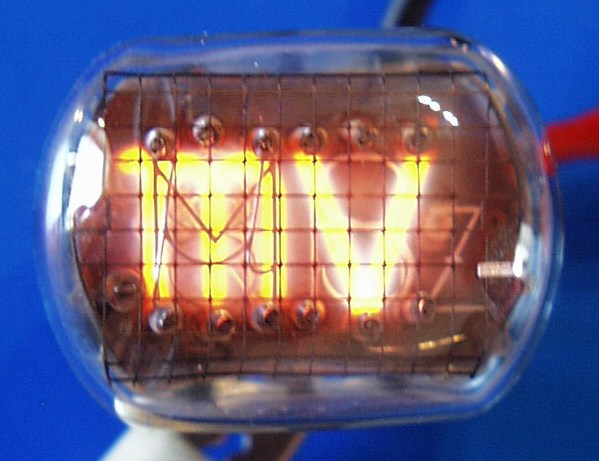

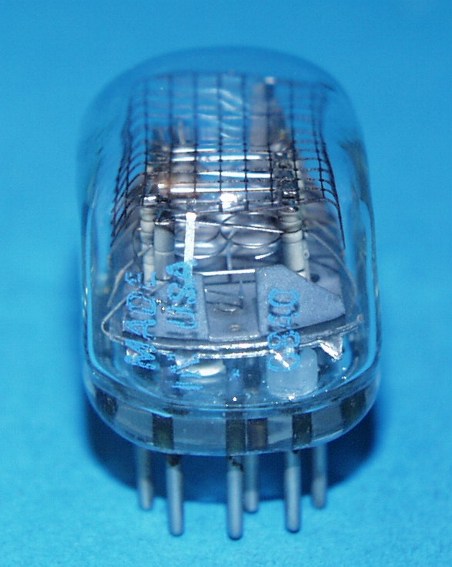

A rare and odd Nixie tube!
| Röhrendaten/ Tube Data | |||
| German | English | ||
| Typ | Type | NL-816 | |
| Hersteller | Brand | National Electronics | |
| Vergleichstypen | Substitudes | - | |

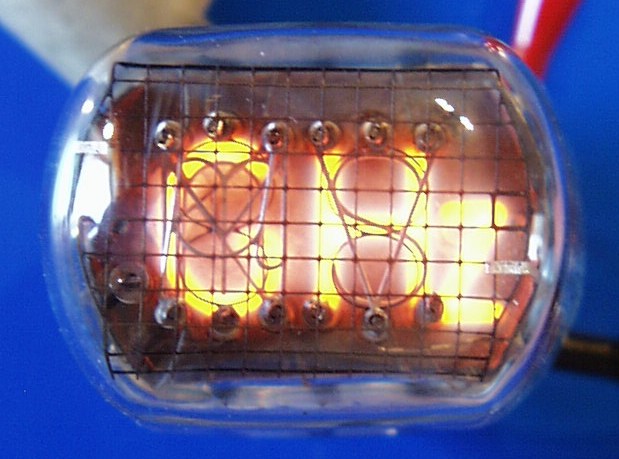

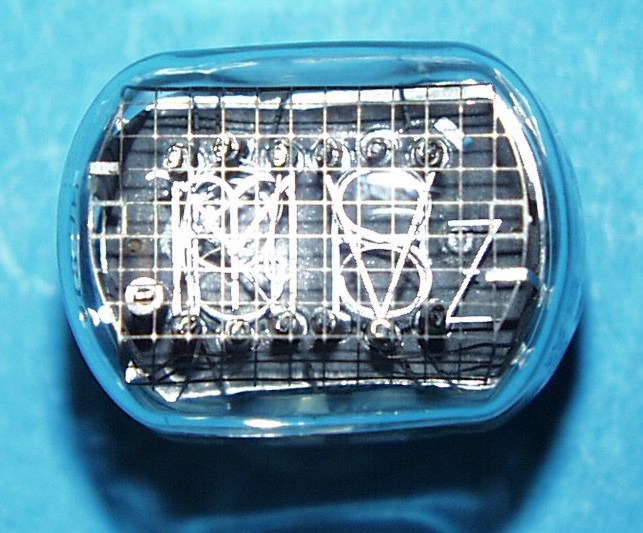

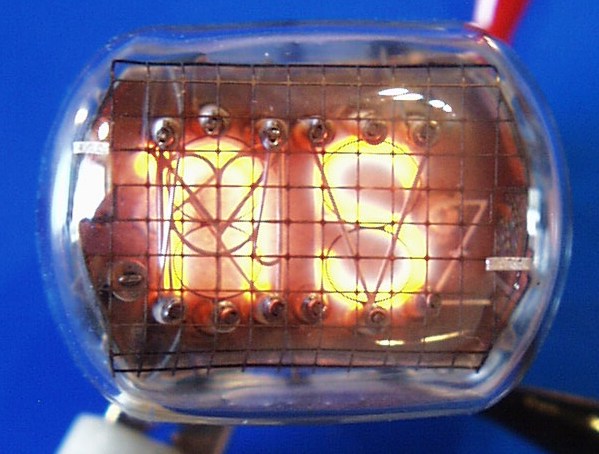

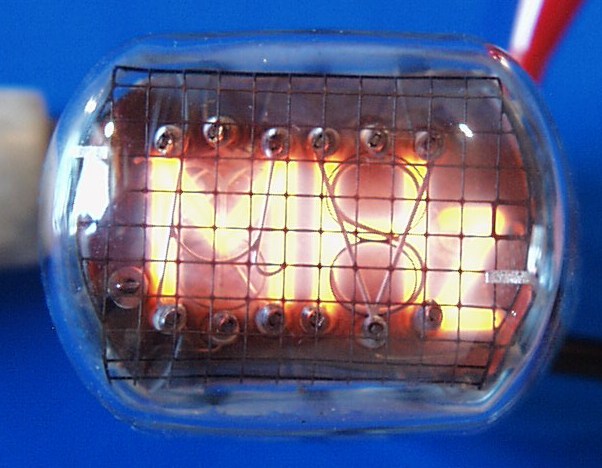

| Symbole | Displayed symbols | PL, n, µ, m, K, M, G [left], Hz, S, V [right] | |
| Symbolhöhe | Symbol height | 7.75mm (0.305") | |
| Abmessungen | Overall dimensions | 20mm (0.790") X 26mm (1.020") X 28.5mm (1.120") tall | |
| Pindurchmesser | Pin diameter | 1.02mm (0.040") | |
| min. Betriebsspannung | min. supply voltage | V | 170 |
| typ. Brennspannung | typ. maintaining voltage | V | 145 |
|
Betriebs- Kathodenstrom |
typ. cahthode current | mA | 1-1.5 (Abhängig vom Symbol/ Depends to Symbol) |
| Sockel | Base | SK-136 | |
| Fassung | Socket |
SK-136 oder Einlötbuchsen 1mm/ SK-136 or Pin Receptacles 1mm |
|

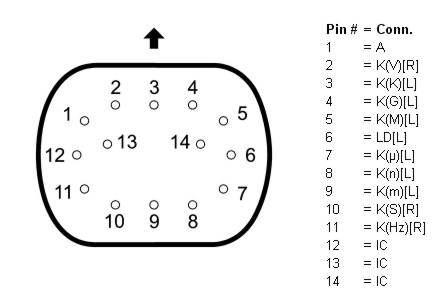

Pinout:
(Pinout- graphic by Alan Franzman)

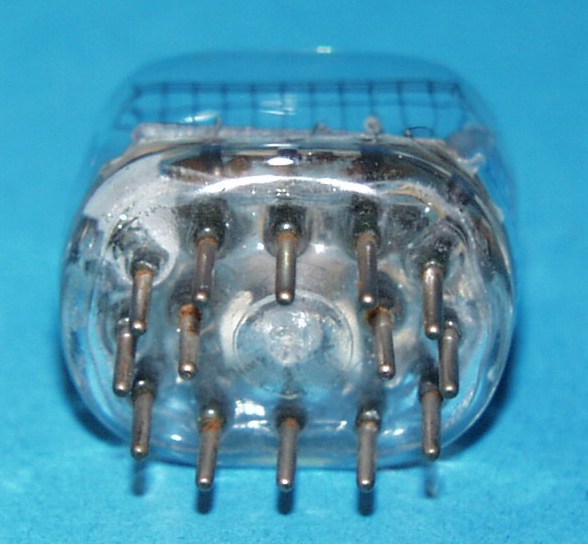

Ansicht von unten / Bottom view
Pfeil zeigt nach oben / Arrow points away from tube
outline indicating top of symbols!
