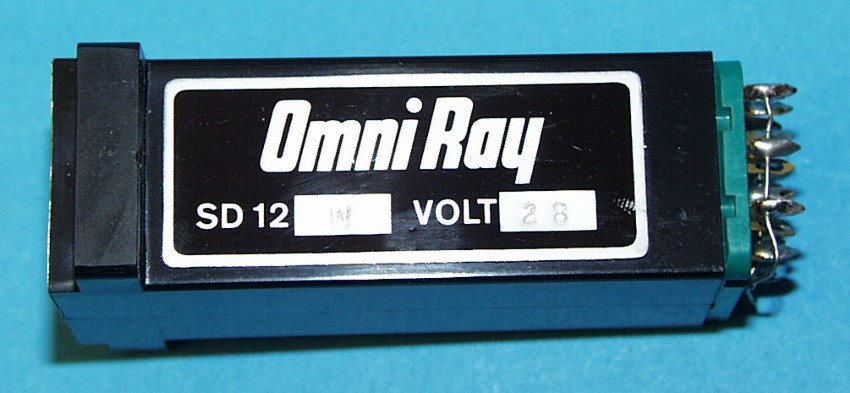

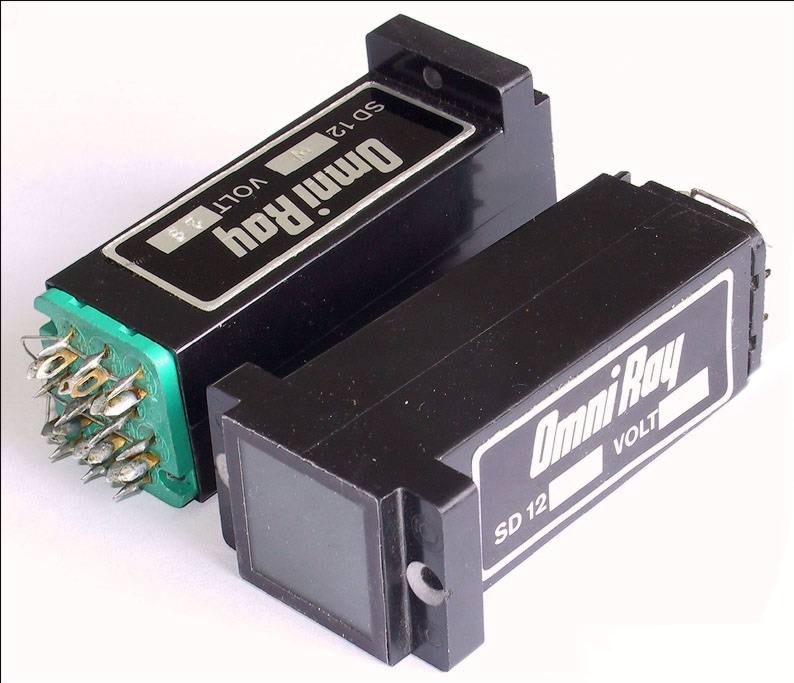

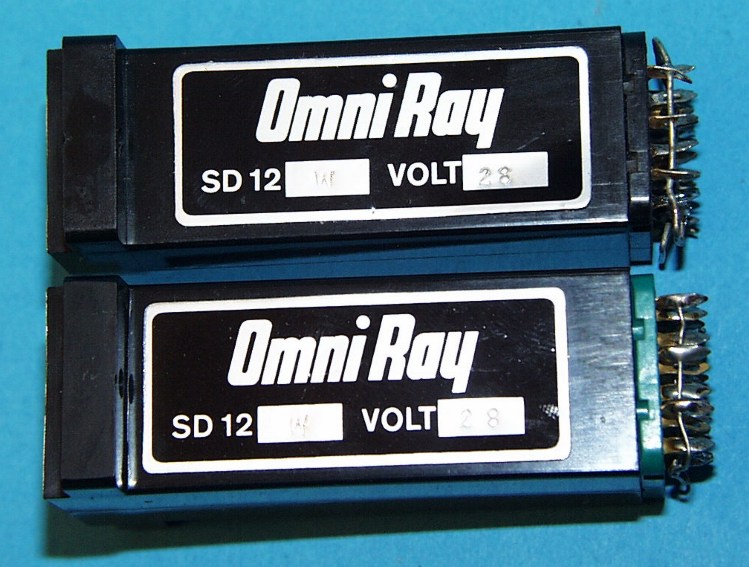

SD12W (Omni Ray) |
This is a mega- rare display.
Very difficult to find!
Displaydaten/ Display Data | |||
German | English | ||
Typ | Type | SD12W-28V | |
Hersteller | Brand | Omni Ray | |
Vergleichstypen | Substitudes | SD-12 | |

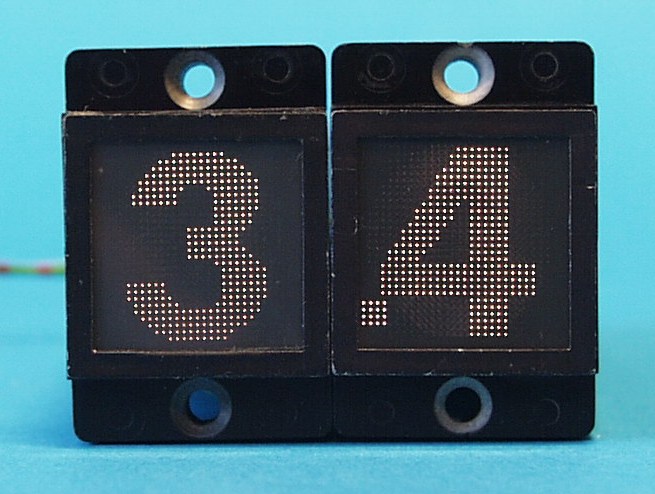

Symbole | Displayed symbols | 0-9, PL | |
Symbolhöhe | Symbol height | 19mm (0.75") | |
Betriebsspannung | Operating voltage | V | 28 |
Betriebsstrom | Operating current | mA | 40 |

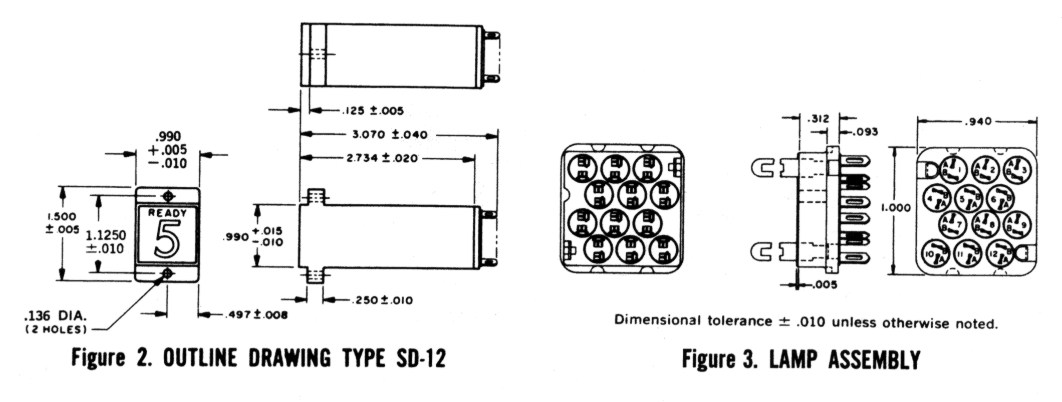

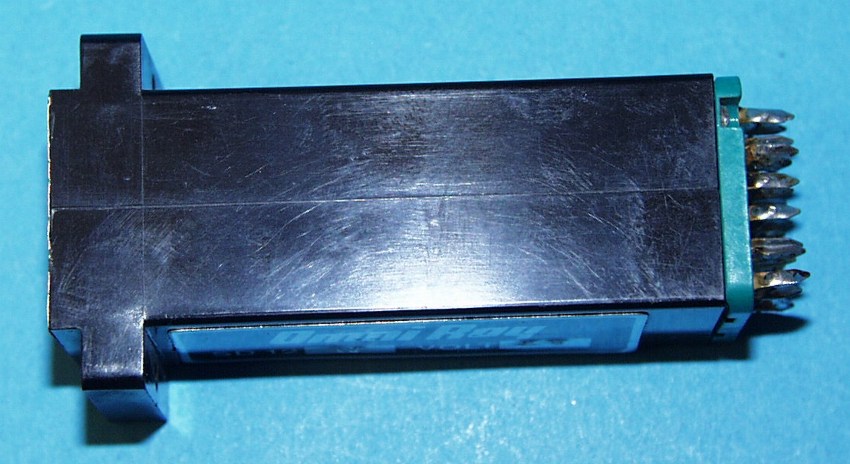

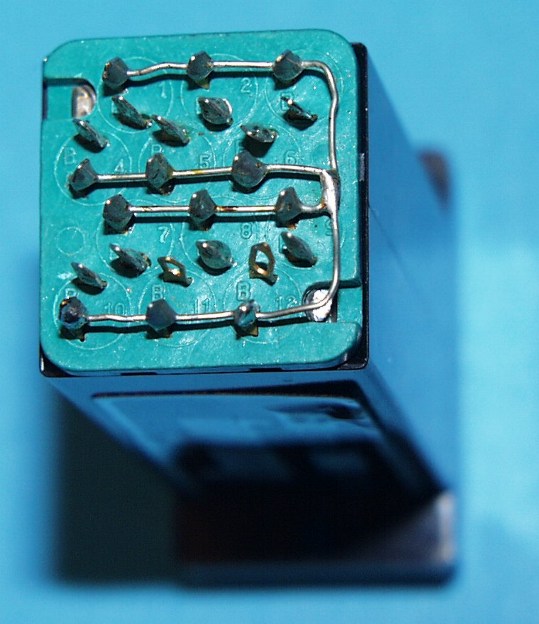

Outline:
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
