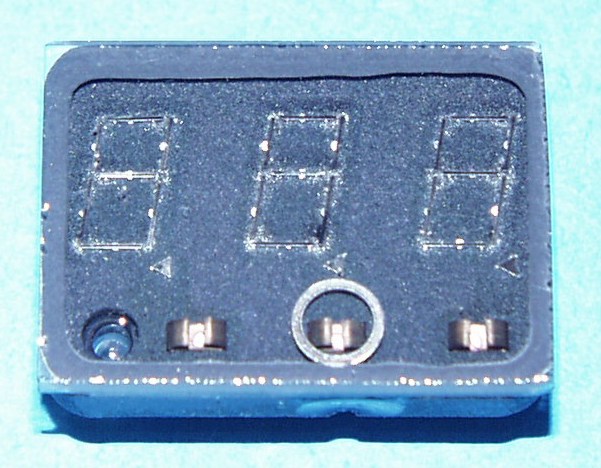

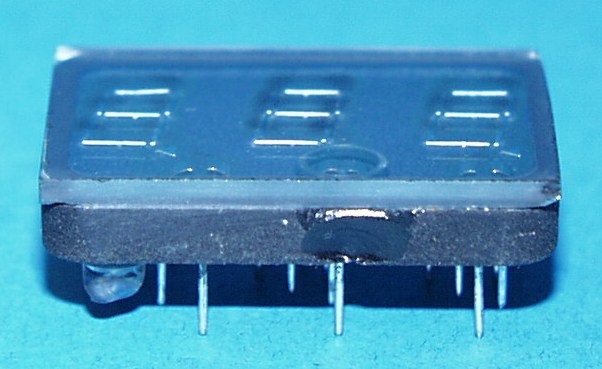

| SP-733 (Beckman/ Sperry) Panaplex Display |
Planar neon gas discharge 'Panaplex' readout.
Separate anodes allow single-digit multiplexing.
Same as SP-333, but without keep alive cathode.
Used in Heathkit IC-2008A calculator.
The sockets (Sperry/Chinch 9-0010):
| Röhrendaten/ Tube Data | |||
| German | English | ||
| Typ | Type | SP-733 | |
| Hersteller | Brand | Sperry | |
| Vergleichstypen | Substitudes | HB-333, SP-333 | |
| Symbole | Displayed Symbols | 3-Digit, 7 segment, 3 x PR | |
| Symbolhöhe | Symbol Height | 7.75mm (0.305") | |
| Abmessungen | Dimensions | 28.58mm (1.125") X 21mm (0.815") X 11.5mm (0.455") thick | |
| Pindurchmesser | Pin Diameter | mm | 0.48 (0.019") |
| min. Betriebsspannung | min. Supply Voltage | V | 160 |
| typ. Brennspannung | typ. maintaining Voltage | V | 135 |
|
Betriebs- Kathodenstrom |
Typical Cahthode Current |
mA |
Siehe Datenblatt für die verschiedenen Segmente!/ See data sheet for different segments! |
| Sockel | Base | 27 Pins, special arrangement | |
| Fassung | Socket | 9-0010 | |
Outline (See SP-333):
Pinout:
Ansicht von vorne / View from front
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
