Two anode connections. Can be multiplexed by digit pairs,
for example as in an assembly with SP-736 for additional digits.

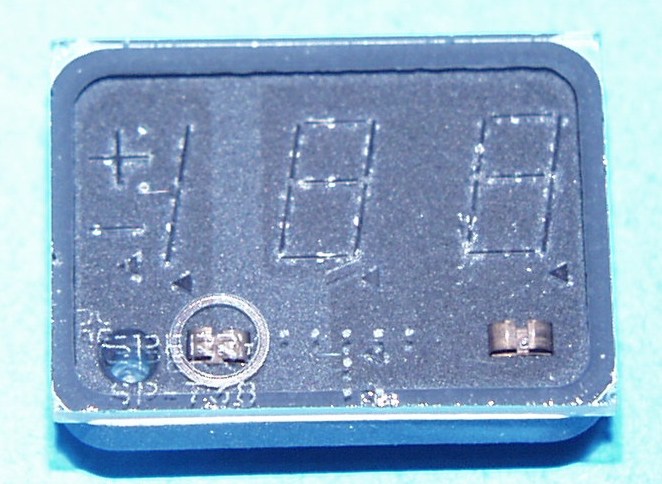

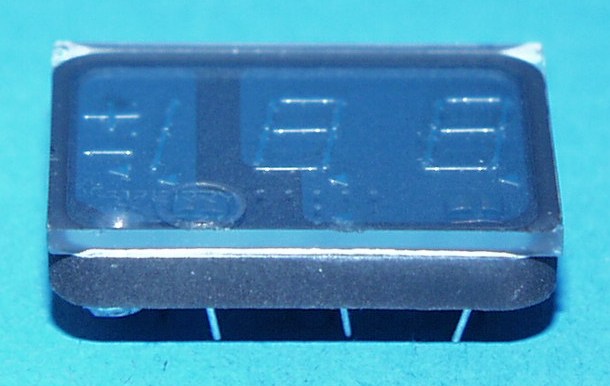

| SP-738 (Sperry) Panaplex Display |
Planar neon gas discharge 'Panaplex' readout.
Two anode connections. Can be multiplexed by digit pairs,
for example as in an assembly with SP-736 for additional digits.

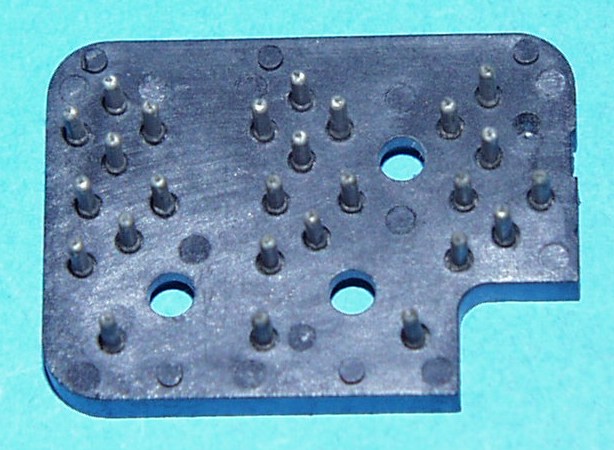

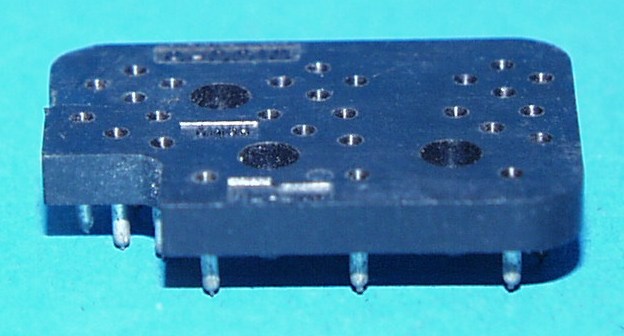

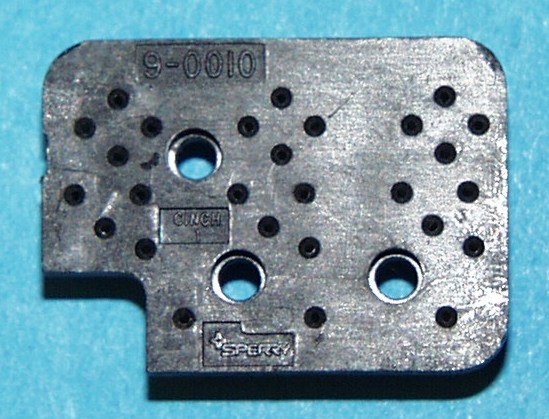

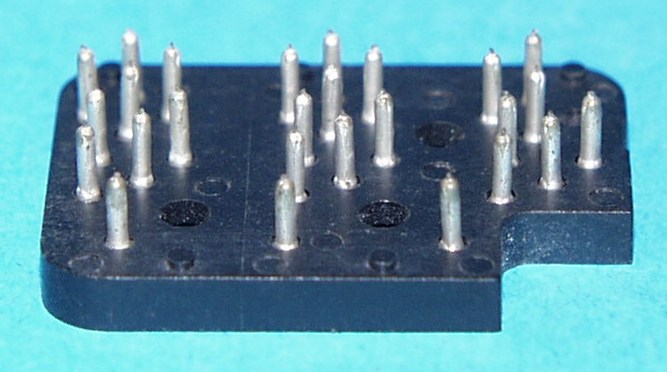

The sockets (Sperry/Chinch 9-0010):
| Röhrendaten/ Tube Data | |||
| German | English | ||
| Typ | Type | SP-738 | |
| Hersteller | Brand | Sperry | |
| Vergleichstypen | Substitudes | (SP-334) | |
| Symbole | Displayed Symbols | +, −, 2½-Digit, 7 segment, 4 x decimal point, : (colon is undocumented!) |
|
| Symbolhöhe | Symbol Height | 7.75mm (0.305") | |
| Abmessungen | Dimensions | 28.58mm (1.125") X 21mm (0.815") X 11.5mm (0.455") thick | |
| Pindurchmesser | Pin Diameter | mm | 0.48 (0.019") |
| min. Betriebsspannung | min. Supply Voltage | V | 160 |
| typ. Brennspannung | typ. maintaining Voltage | V | 135 |
|
Betriebs- Kathodenstrom |
Typical Cahthode Current |
mA |
Siehe Datenblatt für die verschiedenen Segmente!/ See data sheet for different segments! |
| Sockel | Base | 27 Pins, special arrangement | |
| Fassung | Socket | 9-0010 | |
Outline (See SP-334):

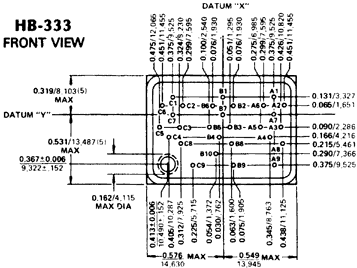

Pinout (See HB-333):
Ansicht von vorne / View from front
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
