| SP-754 (Beckman) Panaplex Display |

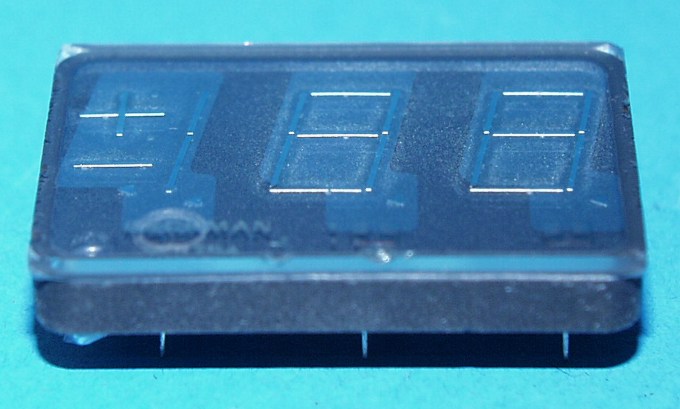

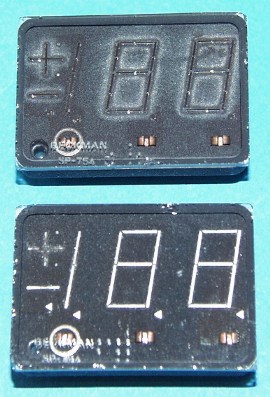

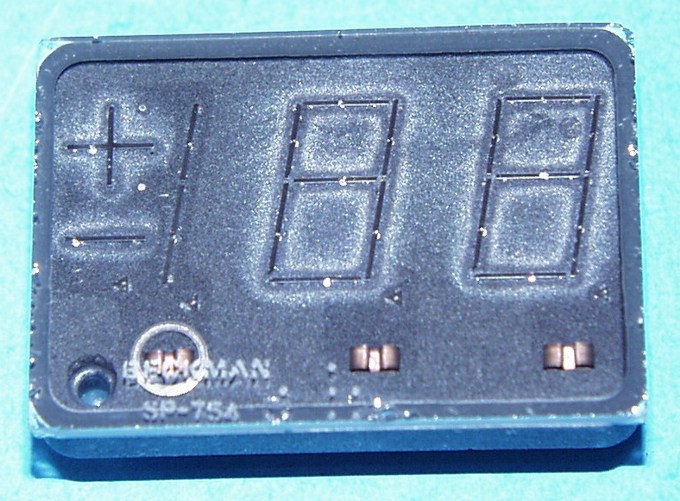

Planar neon gas discharge 'Panaplex' readout.
Same as SP-354 but without keep-alive cathodes.
Separate anodes allow single-digit multiplexing.
The sockets (Beckman CS-353):

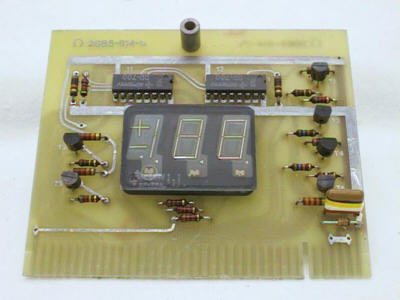

Example of use:
| Röhrendaten/ Tube Data | |||
| German | English | ||
| Typ | Type | SP-754 | |
| Hersteller | Brand | Beckman | |
| Vergleichstypen | Substitudes | SP-354 | |
| Symbole | Displayed Symbols | +, −, 2½-Digit, 7 segment, 4 x decimal point, : (colon is undocumented!) |
|
| Symbolhöhe | Symbol Height | 14mm (0.55") | |
| Abmessungen | Dimensions | 26mm (1.026") X 28.5mm (1.12") X 13mm (0.515") thick | |
| Pindurchmesser | Pin Diameter | mm | 0.48 (0.019") |
| min. Betriebsspannung | min. Supply Voltage | V | 160 |
| typ. Brennspannung | typ. maintaining Voltage | V | 135 |
|
Betriebs- Kathodenstrom |
Typical Cahthode Current |
mA |
Siehe Datenblatt für die verschiedenen Segmente!/ See data sheet for different segments! |

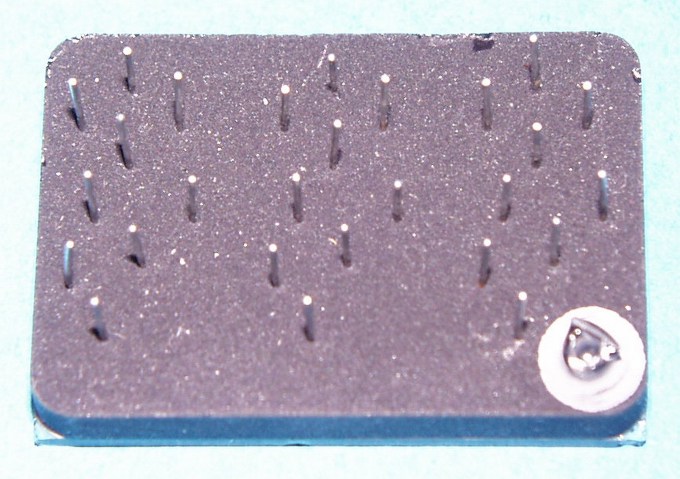

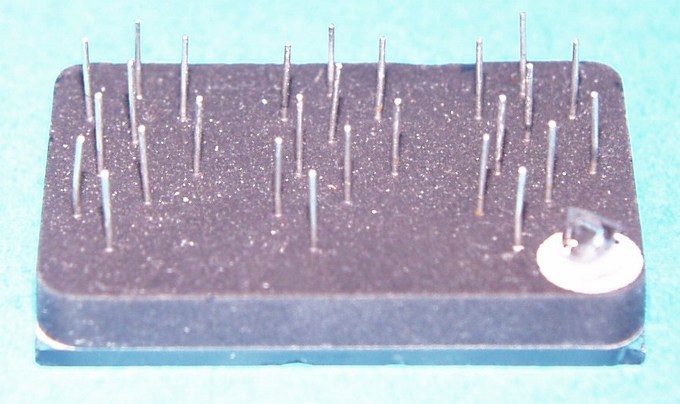

| Sockel | Base | 27 Pins, special arrangement | |
| Fassung | Socket | CS-353 | |
P(D)seg Max.(W) Power Dissp. = 370mW
Vsup Nom.(V) Supply Voltage = 200V
Iseg (A) Segment Forward Cur. = 330uA
t(resp) Max.(s) Response Time = 200uA
Lv Typ.(fL) Luminance = 250fL
Outline (See SP-354!):
Pinout:
Ansicht von vorne / View from front
