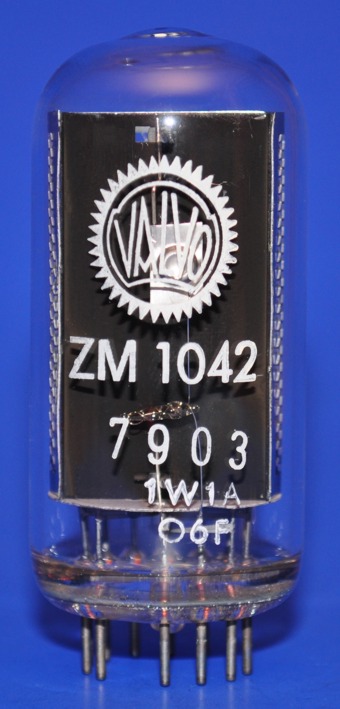

ZM1042 (Valvo)
Nixie Röhre/Nixie Tube

Die ZM1040/1042 sind die beliebtesten 30 mm Röhren.
Sie finden diese Röhren und passende Fassungen (B13B) hier zum Kauf.

The ZM1040/1042 are the most favored 30 mm tubes
You'll find this these tubes and matching sockets (B13B) here for sale.





The Valvo tubes came in 2 different kinds of tube boxes:




Hier sehen Sie ein Beispiel wie man dise Röhre verwenden kann - die V600 Blue Dream Nixie Clock:/

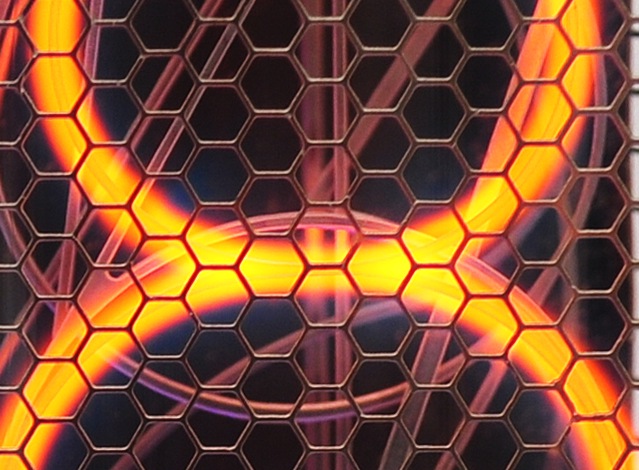

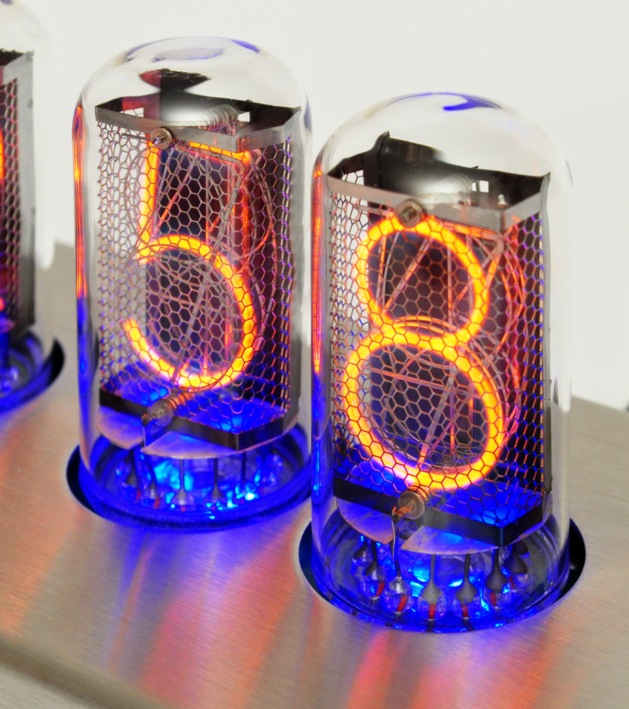

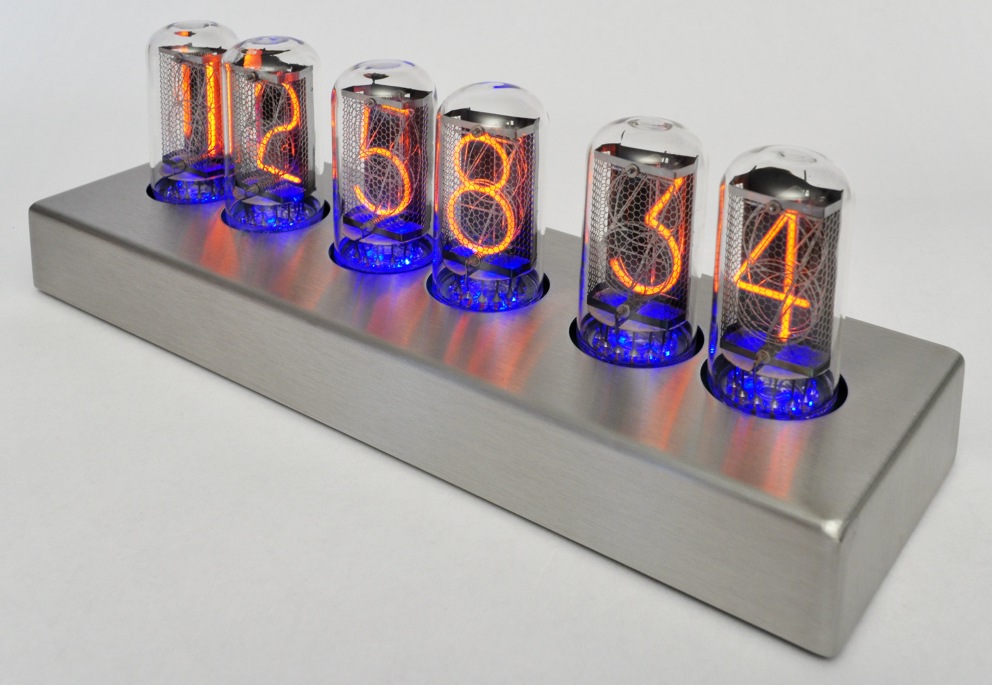

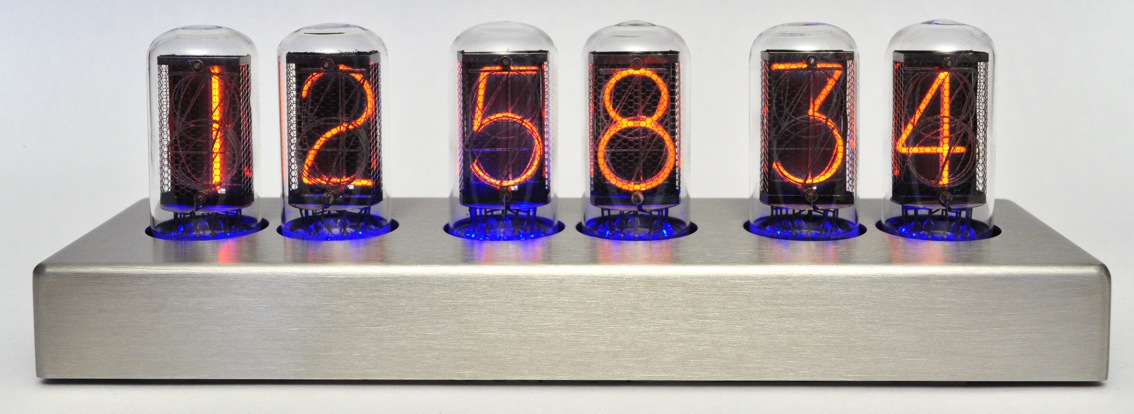

Here you see an example how to use this tube - the V600 Blue Dream Nixie Clock:

Röhrendaten/Tube Data
German English
Typ Type   ZM1042
Hersteller Brand   Valvo
Vergleichstypen Substitutes   B566M, LC-631 (Version 01), LC-631 (Version 02), Z5220M, Z522M, Z566M, Z5660M, ZM1040, ZM1040T, ZM1042/01

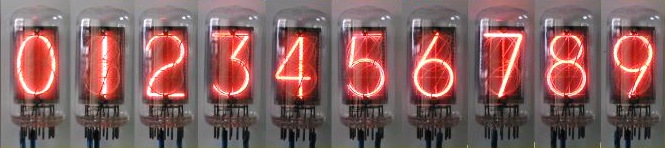

Symbole Displayed symbols   0-9
Symbolhöhe Symbol height   30mm (1.181")
Abmessungen Overall dimensions   30mm (1.181") dia. X 69mm (2.717") tall
Pindurchmesser Pin diameter   1.02mm (0.040")
min. Betriebsspannung min. supply voltage V 170
typ. Brennspannung typ. maintaining voltage V 140
Betriebs-Kathodenstrom Typical cathode current mA 4.5
Sockel Base   B13B, Pin 8 vorne/
B13B, pin 8 at front
Fassung Socket   B13B

Outline/Pinout:

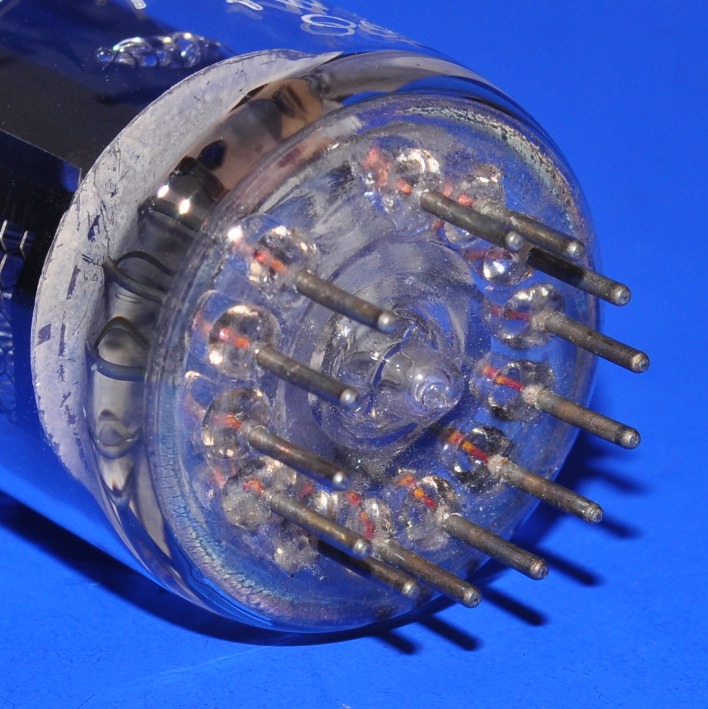

Ansicht von unten/Bottom view
Pfeil zeigt Blickrichtung/Arrow shows direction of viewing!

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
