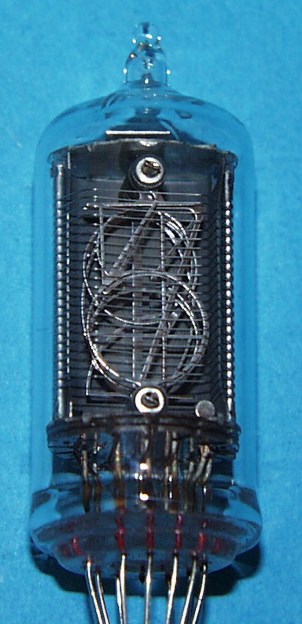

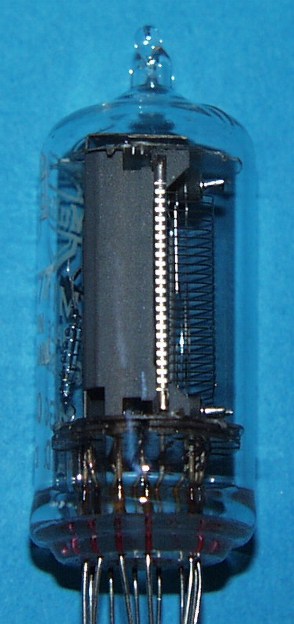

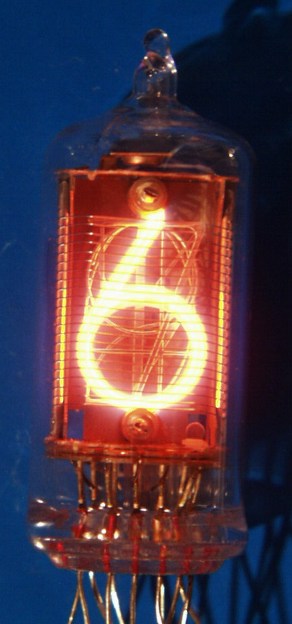

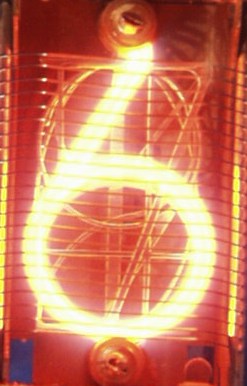

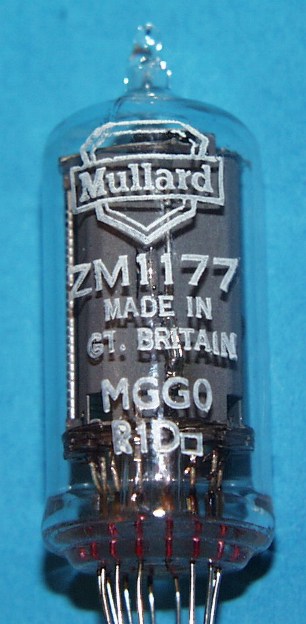

ZM1177 (Mullard)
Nixie Röhre / Nixie Tube









Röhrendaten / Tube Data
German English
Typ Type   ZM1177
Hersteller Brand   Mullard
Vergleichstypen Substitudes   ZM1176
Symbole Displayed symbols   0-9, PR
Symbolhöhe Symbol height   15.5mm (0.61")
Abmessungen Overall dimensions   19mm (0.75") dia. X 47.5mm (1.87") tall
Pindurchmesser Pin diameter   0.45mm (0.018")
min. Betriebsspannung min. supply voltage V 170
typ. Brennspannung typ. maintaining voltage V 140
Betriebs-
Kathodenstrom
typ. cahthode current mA 2
Sockel Base   B13D, Pin 9 vorne/
B13D, pin 9 in front
Fassung Socket   Drahtanschluss, keine Fassung erf./
Wire connection, no socket needed

Outline/Pinout:

Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung / Arrow shows direction of viewing!

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
