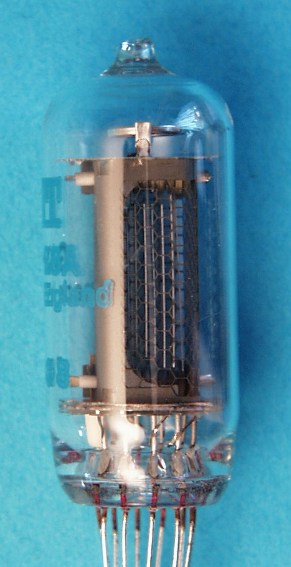

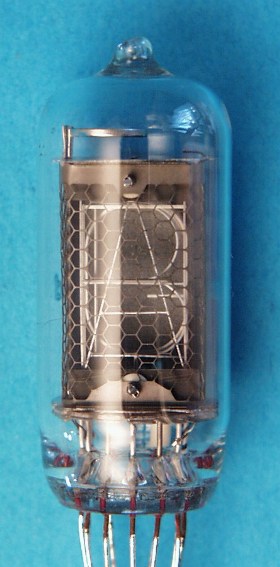

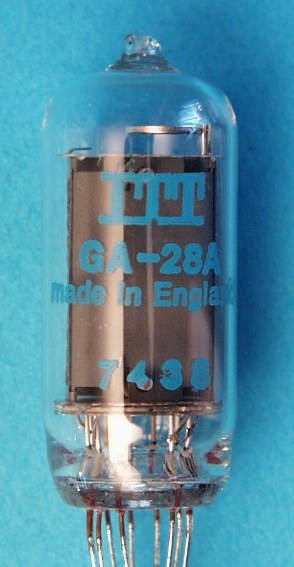

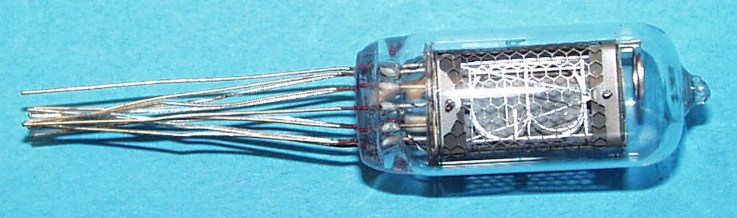

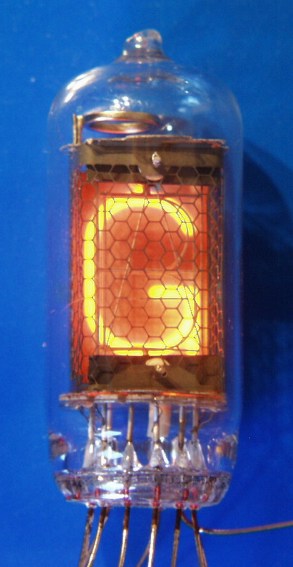

| GA-28A (ITT) Nixie Röhre/ Nixie Tube |
A rare Nixie tube with letters!
Hard to find!

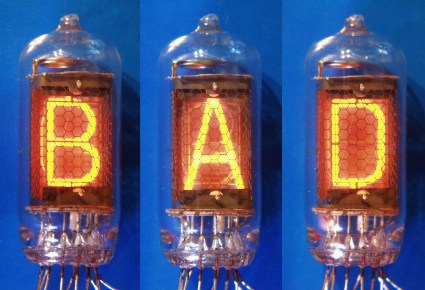

You can create words with that tube :-)
| Röhrendaten/ Tube Data | |||
| German | English | ||
| Typ | Type | GA-28A | |
| Hersteller | Brand | ITT | |
| Vergleichstypen | Substitudes | - | |

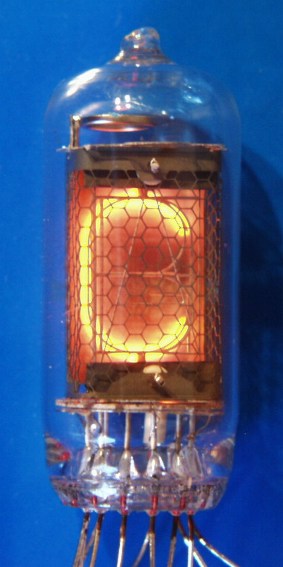

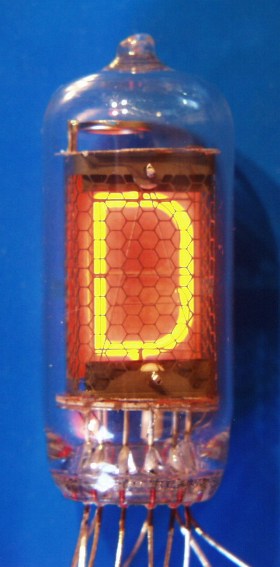

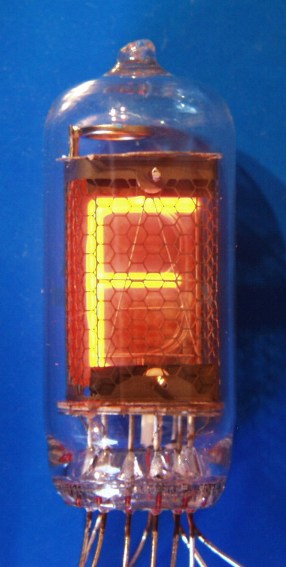

| Symbole | Displayed symbols | A, B, C, D, E, F, G | |
| Symbolhöhe | Symbol height | 15.5mm (0.610") | |
| Abmessungen | Overall dimensions | 19mm (0.75") dia. X 47.6mm (1.87") tall | |
| Pindurchmesser | Pin diameter | 0.45mm (0.018") | |
| min. Betriebsspannung | min. supply voltage | V | 170 |
| typ. Brennspannung | typ. maintaining voltage | V | 140 |
|
Betriebs- Kathodenstrom |
typ. cahthode current | mA | 2.25 |
| Sockel | Base |
SK-116, aber keine Pins sondern Drähte/ SK-116, but no pins, but wires |
|
| Fassung | Socket |
Drahtanschluss, keine Fassung erf./ Wire connection, no socket needed |
|
Pinout:
| Pin |
Anschluss/ Connection |
| 1 | Cathode (C) |
| 2 | Cathode (D) |
| 3 | Cathode (E) |
| 4 | Cathode (H) |
| 5 | IC |
| 6 | Cathode (A) |
| 7 | IC |
| 8 | Cathode (F) |
| 9 | Cathode (B) |
| 10 | Cathode (G) |
| 11 | Anode |
(Graphic by Alan Franzman)
Ansicht von unten / Bottom view
Pfeil zeigt nach oben/ Arrow toward tube outline
indicating direction of viewing

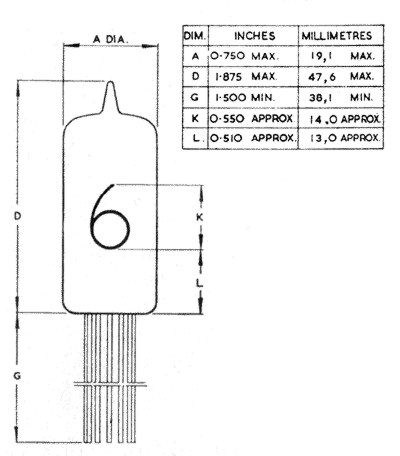

Outline:
