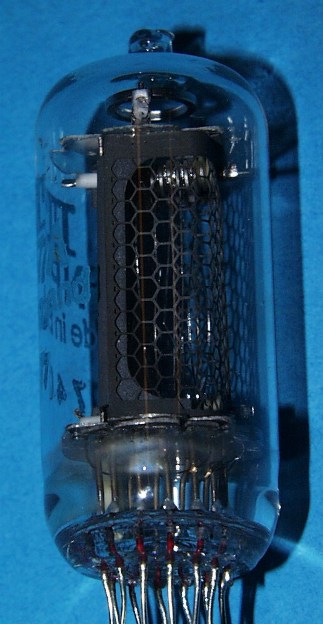

GNP-7A (ITT) |
| Röhrendaten / Tube Data | |||
| German | English | ||
| Typ | Type | GNP-7A | |
| Hersteller | Brand | ITT | |
| Vergleichstypen | Substitudes | GNP-7 | |
| Symbole | Displayed symbols | 0-9, PL, PR | |
| Symbolhöhe | Symbol height | 15.5mm (0.61") | |
| Abmessungen | Overall dimensions | 19mm (0.75") dia. X 47mm (1.85") tall | |
| Pindurchmesser | Pin diameter | 0.45mm (0.018") | |
| min. Betriebsspannung | min. supply voltage | V | 170 |
| typ. Brennspannung | typ. maintaining voltage | V | 145 |
| Betriebs-Kathodenstrom | typ. cahthode current | mA | 2 |
| Sockel | Base |
B13D, Pin 7 vorne/ B13D, pin 7 at front |
|
| Fassung | Socket |
Drahtanschluss, keine Fassung erf./ Wire connection, no socket needed |
|
Pinout:
|
|
Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung / Arrow shows direction of
viewing!
