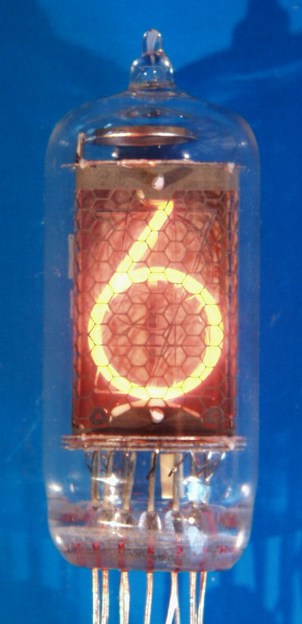

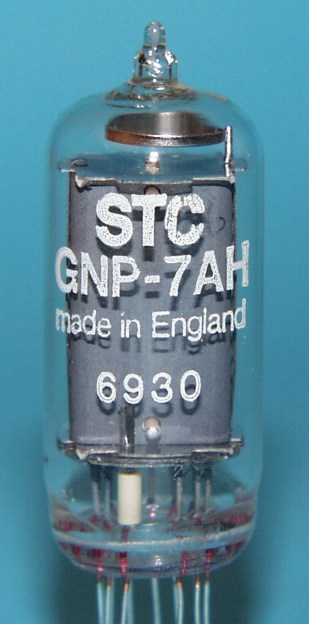

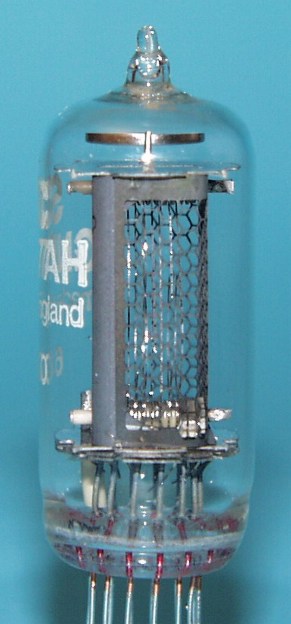

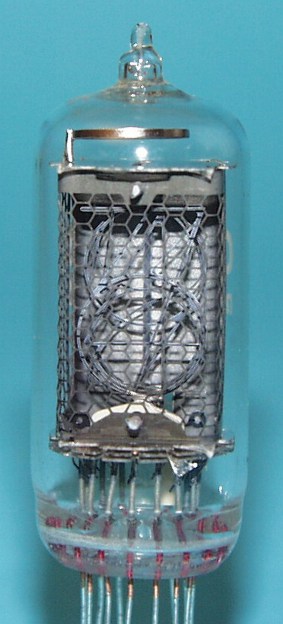

GNP-7AH (STC)
Nixie Röhre/ Nixie Tube



Röhrendaten / Tube Data
German English
Typ Type   GNP-7AH
Hersteller Brand   STC
Vergleichstypen Substitudes   GNP-7H
Symbole Displayed symbols   0-9, PL, PR
Symbolhöhe Symbol height   15.5mm (0.61")
Abmessungen Overall dimensions   19mm (0.75") dia. X 47mm (1.85") tall
Pindurchmesser Pin diameter   0.45mm (0.018")
min. Betriebsspannung min. supply voltage V 180
typ. Brennspannung typ. maintaining voltage V 155
Betriebs-Kathodenstrom typ. cahthode current mA 2
Sockel Base   B13D, Pin 7 vorne/
B13D, pin 7 at front
Fassung Socket   Drahtanschluss, keine Fassung erf./
Wire connection, no socket needed

Pinout:


Pin Anschluss/
Connection
1 1
2 2
3 3
4 4
5 5
6 PR
7 PL
8 6
9 7
10 8
11 9
12 0
13 Anode

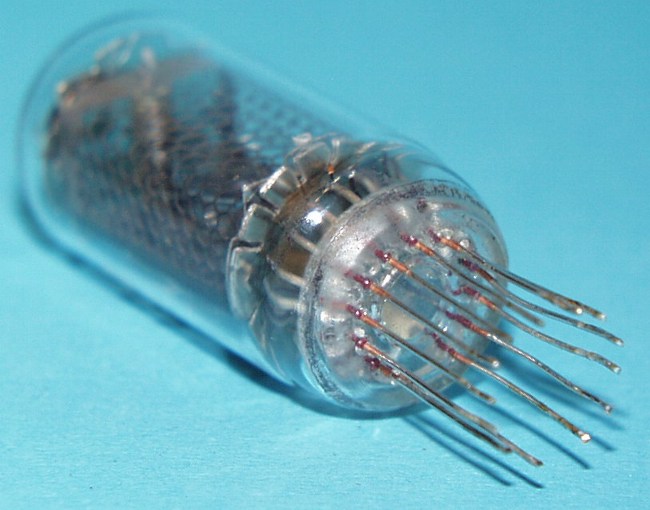

Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung / Arrow shows direction of viewing!
