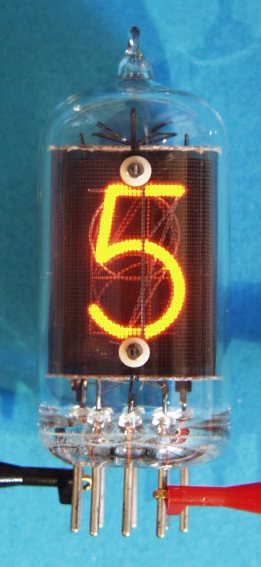

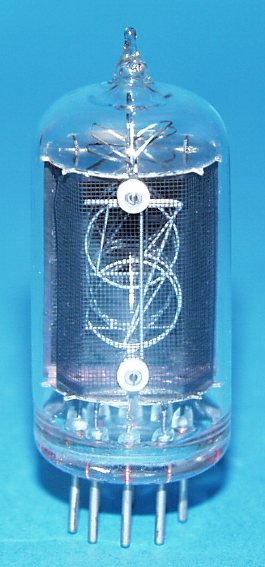

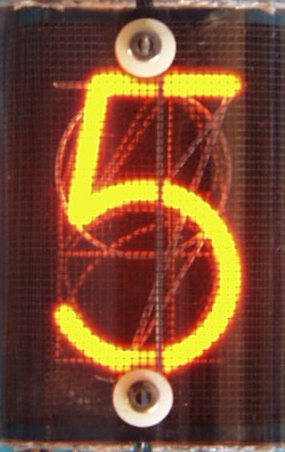

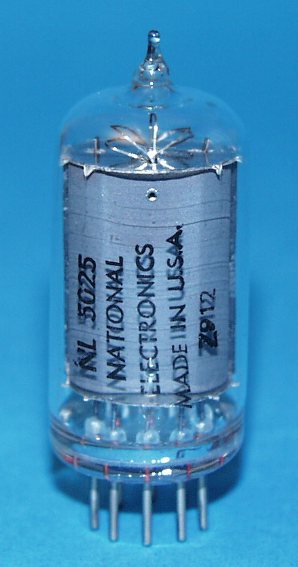

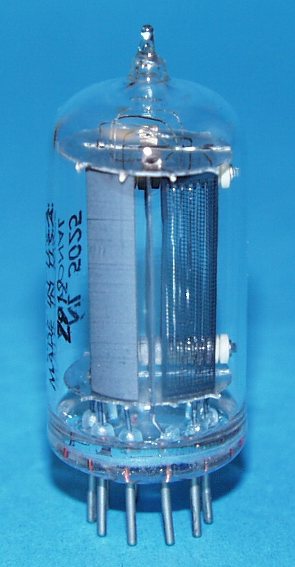

NL-5025 (National Electronics) Nixie Röhre/ Nixie Tube

Eine der schönsten binquinären Nixie Röhren/
One of the most beatiful biquinary Nixie tube!

Röhrendaten/ Tube Data
German English
Typ Type   B-5025
Hersteller Brand   Burroughs
Vergleichstypen Substitudes   NL-5025
Symbole Displayed Symbols   0-9
Symbolhöhe Symbol Height mm 15.5 (0.610")
Durchmesser Diameter mm 22.2 (0.875")
Höhe gesamt Total Height mm 55.6 (2.19")
Pindurchmesser Pin Diameter mm 1.02
min. Betriebsspannung min. Supply Voltage V 150
typ. Brennspannung typ. maintaining Voltage V 96
Betriebs- Kathodenstrom Typical Cahthode Current mA 2.8

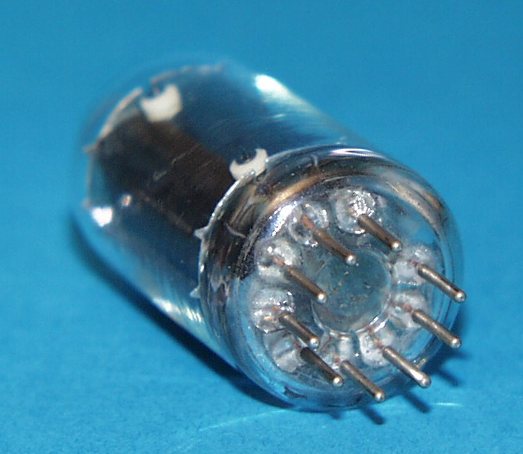

Sockel Base   B9A, Pin 8 vorne/ pin 8 at front
Fassung Socket   B9A (=Noval)

Pinout/ Drawing:

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
