Nixie Fassung/ Socket

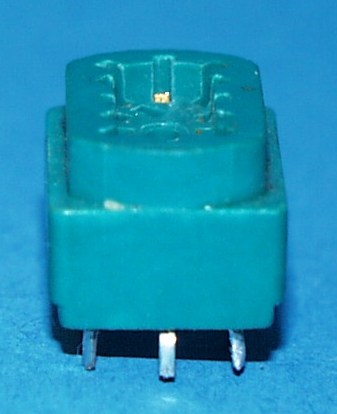

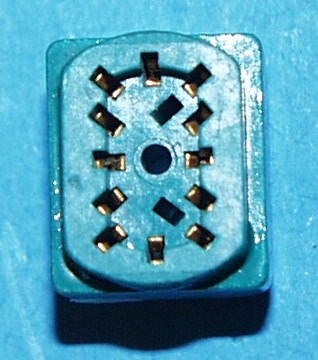

SK-176 Sockel- Beispiel/
SK-176 Base example:

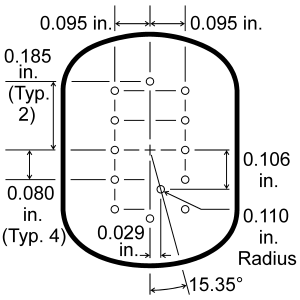

Pinout graphic by Alan Franzman

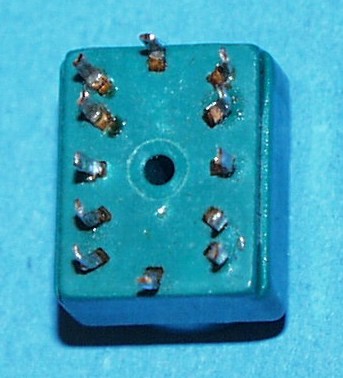

Ansicht von unten / Bottom view

Physical Characteristics:

German English
Anzahl der Pins Number of Pins 13
Typ Type SK-176
für Sockel for base SK-176
Pin- Durchmesser Pin Diameter 0.51mm (0.020")
Vergleichstypen Substitudes Subminiature Oval, RTS-32, RTS-33, SK-178

This tube sockets fit for the following Nixie and readout tubes (examples!):

B-4997; B-4998; B-49982; B-49989; B-49990; NL-4998; NL-49982; NL-49989; NL-49990
and some others!
