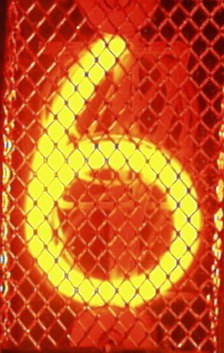

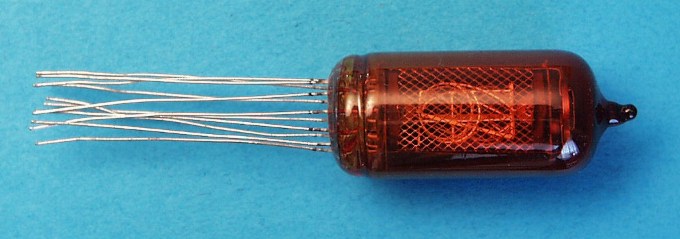

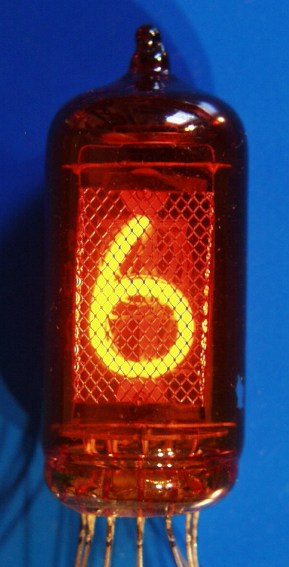

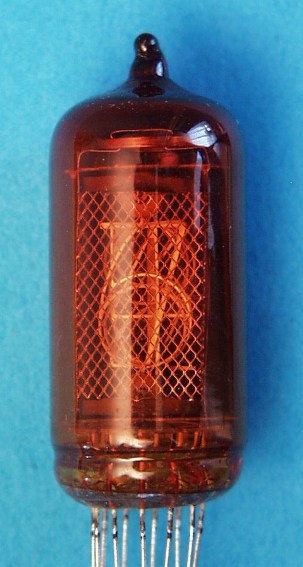

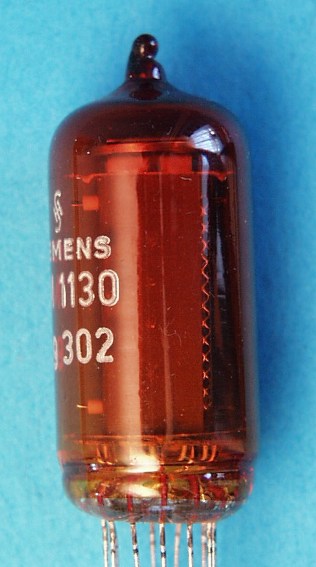

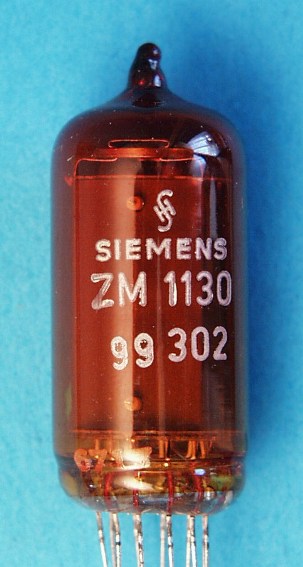

ZM1130 (Siemens) Nixie Röhre/ Nixie Tube



Röhrendaten/ Tube Data
German English
Typ Type   ZM1130
Hersteller Brand   Siemens
Vergleichstypen Substitudes   ZM1132
Symbole Displayed symbols   0-9
Symbolhöhe Symbol height   13mm (0.51")
Abmessungen Overall dimensions   19mm dia. (0.75") X 47.5mm (1.87") tall
Pindurchmesser Pin diameter   0.45mm (0.018")
min. Betriebsspannung min. supply voltage V 170
typ. Brennspannung typ. maintaining voltage V 145
Betriebs-
Kathodenstrom
typ. cahthode current mA 2
Sockel Base   SK-116, aber keine Pins sondern Drähte/
SK-116, but no pins, but wires
Fassung Socket   Drahtanschluss, keine Fassung erf./
Wire connection, no socket needed

Pinout:

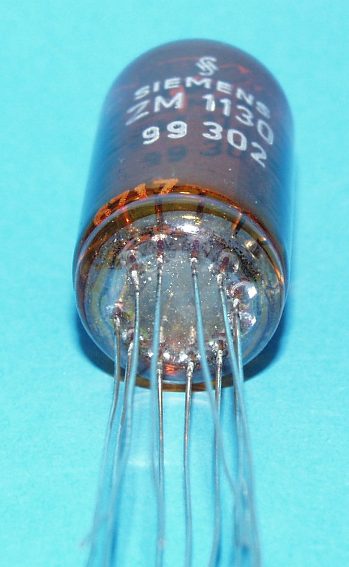

Ansicht von unten / Bottom view
Pfeil zeigt Blickrichtung / Arrow shows direction of viewing!

 1  a  9  k7
 2  k0  10  k8
 3  k1  11  k9
 4  k2
 5  k3
 6  k4
 7  k5
 8  k6

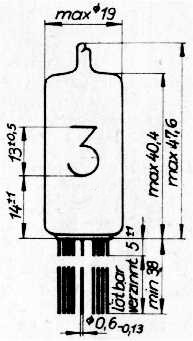

Outline:
