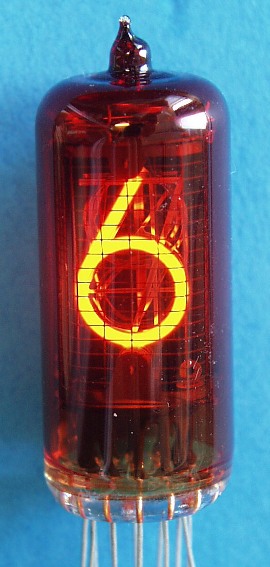

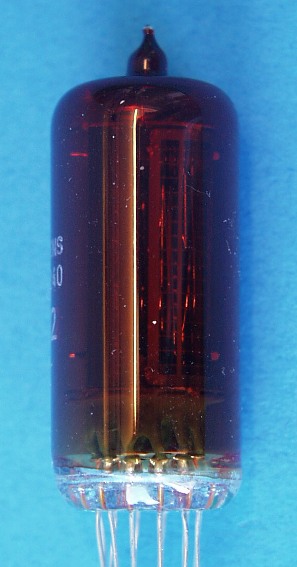

ZM1240 (Siemens) |
ZM1240 und ZM1242 sind Rodan CD66, CD66(A), CD66(L), CD66(DL)
und CD66P umgestempelt!/
ZM1240 and ZM1242 are relabeled Rodan CD66, CD66(A)
CD66(L), CD66(DL) and CD66P!
Röhrendaten/ Tube Data | |||
German | English | ||
Typ | Type | ZM1240 | |
Hersteller | Brand | Siemens | |
Vergleichstypen | Substitudes | ZM1242, CD66, CD66(L), CD66(DL), CD66P | |
Symbole | Displayed Symbols | 0-9, PR | |
Symbolhöhe | Symbol Height | 16mm (0.625") | |
Abmessungen | Dimensions | 19mm (0.75") dia. X 48mm (1.89") tall | |
Pindurchmesser | Pin Diameter | 0.45mm (0.018") | |
min. Betriebsspannung | min. Supply Voltage | V | 170 |
typ. Brennspannung | typ. maintaining Voltage | V | 140 |
Betriebs- Kathodenstrom |
Typical Cahthode Current |
mA | 2.2 |
Sockel | Base |
M9S-1 Sockel. Der M9S-1 Sockel ist ein SK-116 Sockel mit zusätzlichem Draht
an der Leerstelle. Pin 6 vorne/ M9S-1 base. The M9S-1 base is the SK-116 base with additional wire at the pin gap. Pin 6 at front |
|
Fassung | Socket |
Drahtanschluss, keine Fassung erforderlich/ Wires, no socket needed |

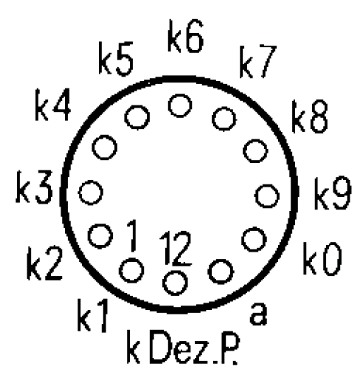

Pinout:
Ansicht von unten / Bottom View
M9S-1 Sockel. Der M9S-1 Sockel ist ein SK-116 Sockel mit zusätzlichem Draht
an der Leerstelle. Pin 6 vorne/
M9S-1 base. The M9S-1 base is the SK-116 base with
additional wire at the pin gap. Pin 6 at front
Outline:
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
