6167 (Western
Electric)
Dekatron counting tube
Unidirectional glow-transfer decimal counting tube.

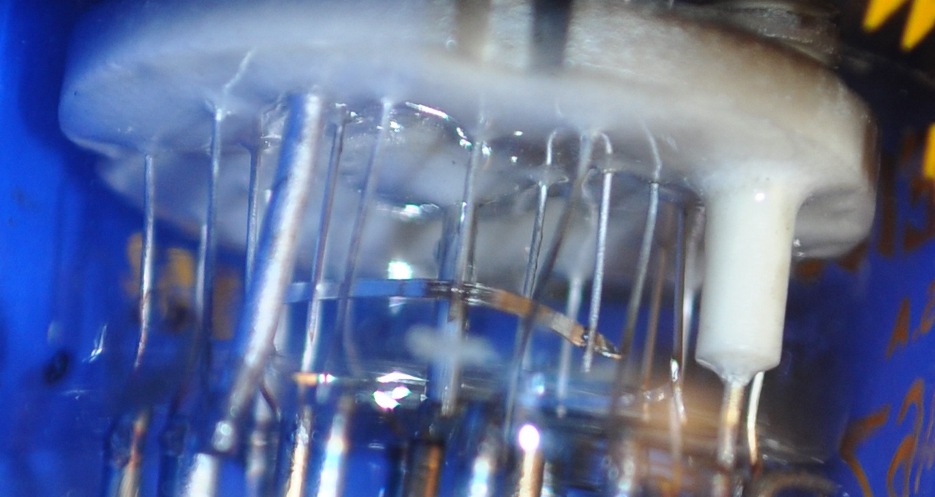

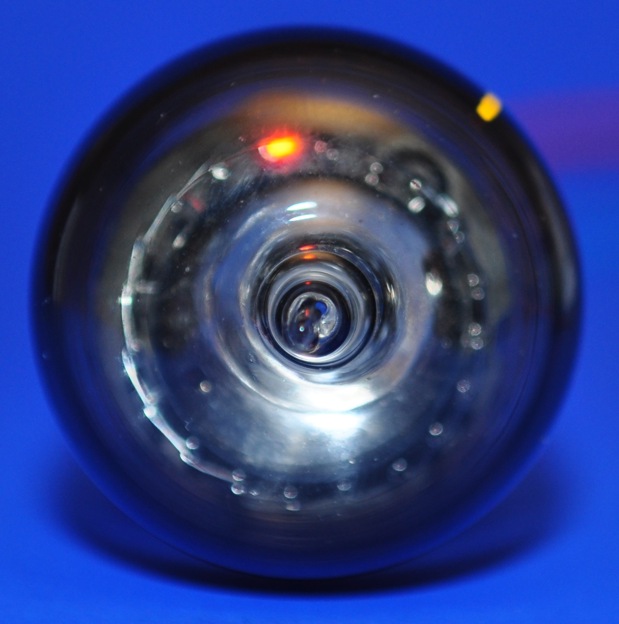

Neon fill. Unusual spring shaped cathodes.
The original box:
Röhrendaten/Tube Data:
German | English | ||
Röhrentyp | Tube type | 6167 | |
Hersteller | Brand | Western Electric | |
Vergleichstypen | Substitutes | - | |
Zähl-Richtung | Counting direction | unidirectional | |
Arbeitsweise | Operation | single pulse | |
Art | Sort | counting & selector tube | |
Sockel | Base | B13B with 3 additional pins at inner circle | |
Fassung | Socket | B13B with 3 additional pins at inner circle | |
Nullposition | Zero position | Pin 5 | |
Zähl-Schritte | Counting steps | 10 | |
Anzahl der Hilfskathoden | Number of guides | 1 split in 2 groups | |
Hinweise | Remarks | Unusual spring shaped cathodes | |
Gasfüllung | Gas filling | Neon | |
Röhrendurchmesser maximal | Tube diameter max. | mm | 30.2 |
Röhrenhöhe maximal | Tube height max. | mm | 55.6 |
max. Zähl-Geschwindigkeit | Max. counting speed | kHz | 1 |
Betriebsspannung minimal | Supply volt. min. | V | 300 |
Brennspannung typisch | Maintaining voltage typ. | V | 110 |
Anoden bzw. Kathodenstrom min. | Anode/cath. current min. | µA | 100 |
Anoden bzw. Kathodenstrom max. | Anode/cath. current max. | µA | 3000 |
Transferspannung minimal | Transfer voltage min. | V | -10 |
Transferspannung maximal | Transfer voltage max. | V | -20 |
Anschlussbelegung: | Pinout: | ||
PIN 01 | PIN 01 | Cathode 3 | |
PIN 02 | PIN 02 | Cathode 2 | |
PIN 03 | PIN 03 | Cathode 1 | |
PIN 04 | PIN 04 | Cathode 0 | |
PIN 05 | PIN 05 | Auxiliary Anode | |
PIN 06 | PIN 06 | internal connection | |
PIN 07 | PIN 07 | Cathode 9 | |
PIN 08 | PIN 08 | Cathode 8 | |
PIN 09 | PIN 09 | Cathode 7 | |
PIN 10 | PIN 10 | Cathode 6 | |
PIN 11 | PIN 11 | Guide B | |
PIN 12 | PIN 12 | Cathode 5 | |
PIN 13 | PIN 13 | Cathode 4 | |
PIN 14 | PIN 14 | Guide A | |
PIN 15 | PIN 15 | no pin | |
PIN 16 | PIN 16 | Normal Cathode | |
PIN 17 | PIN 17 | no pin | |
PIN 18 | PIN 18 | no pin | |
PIN 19 | PIN 19 | Anode |

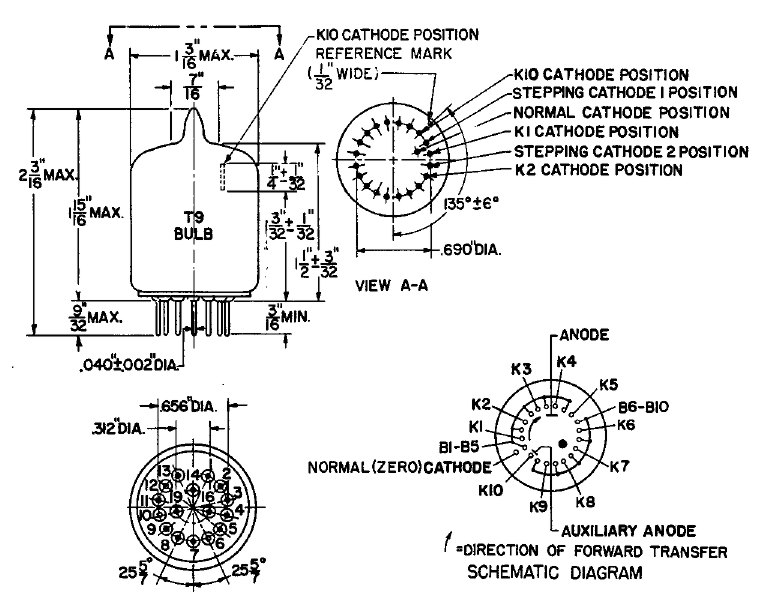

Pinout & Outline:
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
