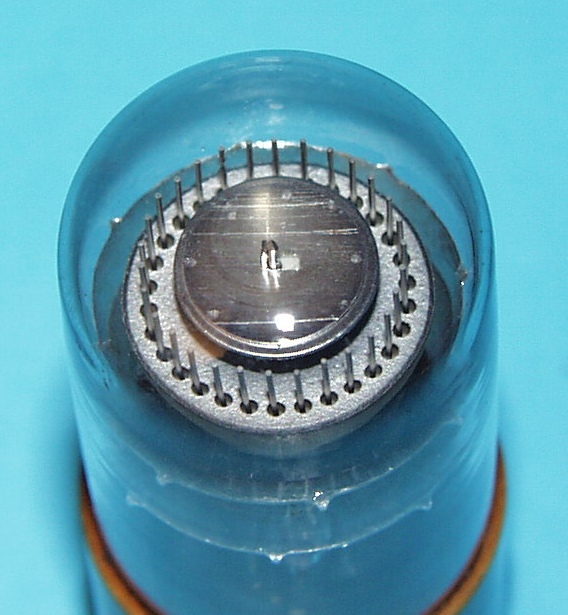

CK6910 (Raytheon)
Dekatron counting tube
Bi-directional double-pulse decimal counting tube.
Argon
filled.
The following pictures show the tube spinning.
Of course, only one of the cathodes is glowing, but the opening time of the
camera generates different pictures:
a long opening time of the camera:
a short opening time of the camera:
by night, with long opening time of the camera:
An animation of a spinning dekatron (neon filled, colour not
like the GS10D!):
| German | English | ||
| Röhrentyp | Tube type | CK6910 | |
| Hersteller | Brand | Raytheon | |
| Vergleichstypen | Substitutes | 6910 | |
| Zähl-Richtung | Counting direction | bidirectional | |
| Arbeitsweise | Operation | double pulse | |
| Art | Sort | SEL | |
| Sockel | Base | B12E | |
| Fassung | Socket | B12E | |
| Nullposition | Zero position | Pin 12 | |
| Zähl-Schritte | Counting steps | 10 | |
| Anzahl der Hilfskathoden | Number of guides | 2 | |
| Gasfüllung | Gas filling | Argon | |
| Röhrendurchmesser maximal | Tube diameter max. | mm | 37 |
| Röhrenhöhe maximal | Tube height max. | mm | 96,5 |
| max. Zähl-Geschwindigkeit | Max. counting speed | kHz | 100 |
| Betriebsspannung minimal | Supply volt. min. | V | 400 |
| Betriebsspannung typisch | Supply volt. typ. | V | 450 |
| Brennspannung typisch | Maintaining voltage typ. | V | 235 |
| Anoden bzw. Kathodenstrom min. | Anode/cath. current min. | µA | 600 |
| Anoden bzw. Kathodenstrom max. | Anode/cath. current max. | µA | 1200 |
| Netzteil Leistung minimal | Power supply power min. | mW | 360 |
| Anodenwiderstand typisch | Anode resistor typical | kΩ | 270 |
| Spannungsdifferenz zw. 2 Kath. max. | Voltage between 2 cathodes max. | V | 140 |
| Transferspannung minimal | Transfer voltage min. | V | 35 |
| Hilfskathodenvorspannnung minimal | Guide bias volt. min. | V | 45 |
| Hilfskathodenimpulsspannung (Rechteck) | Guide signal voltage rectangle | Vp | -85 (min) |
| Hilfskathodenimpulsdauer minimal | Guide signal pulse duration min | µs | 4 |
| Kathodenwiderstand typisch | Cathode resistor typical | kΩ | 24 |
| Kathodenwiderstand maximal | Cathode resistor max. | kΩ | 50 |
| Ausgangsspannung | Output voltage | V | 15 |
| Resetimpulsspannung | Reset pulse voltage min. | V | -120 |
| Resetimpulsdauer min. | Reset pulse duration min. | µs | 4 |
| Anschlussbelegung: | Pinout: | ||
| PIN 01 | PIN 01 | K0 | |
| PIN 02 | PIN 02 | K9 | |
| PIN 03 | PIN 03 | K8 | |
| PIN 04 | PIN 04 | K7 | |
| PIN 05 | PIN 05 | K6 | |
| PIN 06 | PIN 06 | K5 | |
| PIN 07 | PIN 07 | K4 | |
| PIN 08 | PIN 08 | K3 | |
| PIN 09 | PIN 09 | K2 | |
| PIN 10 | PIN 10 | K1 | |
| PIN 11 | PIN 11 | G2 | |
| PIN 12 | PIN 12 | G1 | |
| Kappe in der Mitte | center cap | A |
Pinout & Outline:
Downloads/Datasheets:
Document #158: Raytheon CK6910 Dekatron tube datasheet - Dated 1960
File: CK6910.pdf
Display devices in this document: CK6910
Document #160: Raytheon Catalog SP-7649-360-20M - Dated 1961
File: Raytheon-cat01.pdf
Display devices in this document: 6476, 6802, 6879, 6909, 6910, 7155, 7978, 6476A, GC10/4B, GS10C/S, Z303C, Z502S
Document #236: Sylvania Brochure "Counter Tube Handbook"
File: Sylvania_Counter_Tube_Handbook.pdf
Display devices in this document: 6476A, 6802, 6879, 6909, 6910, 7155, 8035, 8353
Document #237: Sylvania Brochure "Decade Counter Tubes - Second Edition" - Dated 1959
File: Sylvania_Brochure-2.pdf
Display devices in this document: 6476, 6802, 6879, 6909, 6910, 7155, 6476A
Document #028: Ericsson book "Electronic Counting Circuits" - Dated 1967
File: Ericsson-Databook.zip
Display devices in this document:
6370, 6476, 6476A, 6482, 6802, 6844, 6844A, 6879, 6909, 6910, 7009, 7153, 7155,
7977, 7978, 8037, 8262, 8433, B4021, B4081, B50113, B5018, B5031, B5092, B5094,
B5991, B6033, B6037, B6091, B7094, B8091, BD302, BIP-8001, BIP-8002, C10-241E,
CV1739, CV1740, CV2223, CV2271, CV2325, CV5106, CV5143, CV5278, CV5291, CV5842,
CV6044, CV6100, DZ10, E1T, ECT100, EZ10A, EZ10B, F9002, F9004, F9007, F9008,
F9009, G10-241E, GC10-2P, GC10-4B, GC10-4B-L, GC10B, GC10B-L, GC10B-S, GC10D,
GC12-4B, GCA10G, GN4, GN5, GN5A, GN6, GP10-2P, GR10A, GR10G, GR10H, GR10J,
GR10K, GR10M, GR10N, GR10W, GR12G, GR12H, GR2G, GR2H, GR4G, GS10C, GS10C-S,
GS10D, GS10E, GS10G, GS10H, GS10J, GS10K, GS12C, GS12D, GSA10G, P22, P32, P40,
S462, TA542, TA543, XN1, Z302C, Z303C, Z502S, Z503M, Z504S, Z505S, Z510M, Z520M,
Z521M, Z522M, Z550M, ZM1020, ZM1021, ZM1022, ZM1040, ZM1050, ZM1060, ZM1070,
ZM1080
