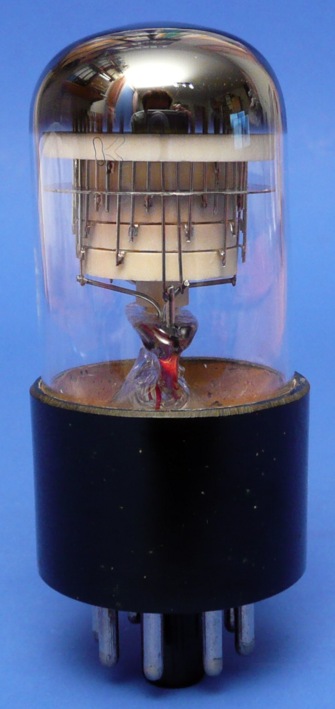

OG-3 (ОГ-3)
Dekatron counting tube
(Version with Bakelite base)
Made by
Анод, Дятьково, Россия (Anode, Dyatkovo, Russia)
Bi-directional single-pulse decimal counting tube.
Argon filled.

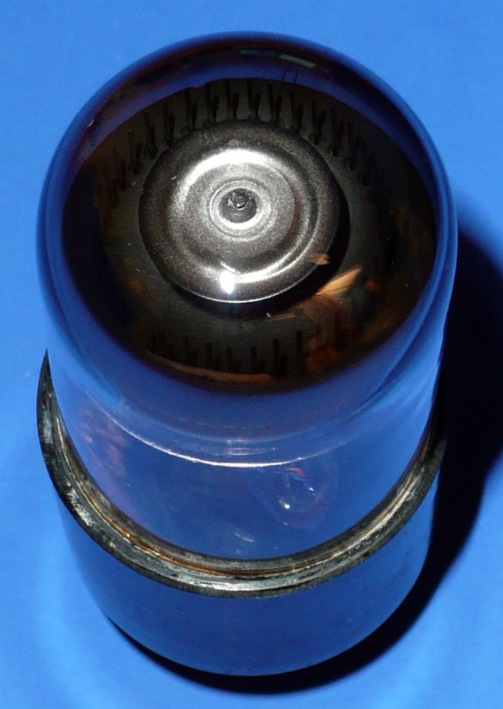

You'll notice a dark coating of
some sort, inside the glass envelope on the top on all the Russian Dekatrons,
also on that OG-3 Dekatrons.
That coating is NOT a sign that the tube is used, but an intentional part of the
manufacturing process.
The following pictures show the tube spinning.
Of course, only one of the cathodes is glowing, but the shutter speed of the
camera generates different pictures:
a high shutter speed of the camera:
a medium shutter speed of the camera:
a low shutter speed of the camera:
An animation sample of a spinning Dekatron (neon filled,
colour not
like the OG3!):
Röhrendaten/Tube Data:
| German | English | ||
| Röhrentyp | Tube type | O-G3 (ОГ-3) | |
| Hersteller | Brand | Анод, Дятьково, Россия (Anode, Dyatkovo, Russia) | |
| Vergleichstypen | Substitutes | - | |
| Zähl-Richtung | Counting direction | bidirectional | |
| Arbeitsweise | Operation | single pulse | |
| Art | Sort | counting tube | |
| Sockel | Base | K8A | |
| Fassung | Socket | K8A | |
| Nullposition | Zero position | Pin 1 | |
| Zähl-Schritte | Counting steps | 10 | |
| Anzahl der Hilfskathoden | Number of guides | 3 | |
| Gasfüllung | Gas filling | Argon | |
| Röhrendurchmesser maximal | Tube diameter max. | mm | 33 |
| Röhrenhöhe maximal | Tube height max. | mm | 76 |
| max. Zähl-Geschwindigkeit | Max. counting speed | kHz | 20 |
| Betriebsspannung minimal | Supply volt. min. | V | 420 |
| Betriebsspannung typisch | Supply volt. typ. | V | 450 |
| Brennspannung minimal | Maintaining voltage min. | V | 170 |
| Brennspannung typisch | Maintaining voltage typ. | V | 190 |
| Brennspannung maximal | Maintaining voltage max. | V | 210 |
| Anoden bzw. Kathodenstrom min. | Anode/cath. current min. | µA | 600 |
| Anoden bzw. Kathodenstrom typ. | Anode/cath. current typ. | µA | 700 |
| Anoden bzw. Kathodenstrom max. | Anode/cath. current max. | µA | 800 |
| Netzteil Leistung minimal | Power supply power min. | mW | 315 |
| Hilfskathodenvorspannnung minimal | Guide bias volt. min. | V | 40 |
| Hilfskathodenvorspannnung Impulsbetrieb typ. | Guide bias typ pulse op. | V | 40 |
| Hilfskathodenvorspannnung maximal | Guide bias volt. max. | V | 50 |
| Hilfskathodenimpulsspannung | Guide signal voltage pulse | Vp | 110-140 (125) |
| Hilfskathodenimpulsdauer minimal | Guide signal pulse duration min | µs | 17-22 |
| Resetimpulsdauer min. | Reset pulse duration min. | µs | 2-5 |
| Anschlussbelegung: | Pinout: | ||
| PIN 01 | PIN 01 | G3 | |
| PIN 02 | PIN 02 | K1-9 | |
| PIN 03 | PIN 03 | G2 | |
| PIN 04 | PIN 04 | NC | |
| PIN 05 | PIN 05 | G1 | |
| PIN 06 | PIN 06 | A | |
| PIN 07 | PIN 07 | Guide3 (K0) | |
| PIN 08 | PIN 08 | K0 |
Pinout, outline and typical application:
The OG-3 Dekatron Spinner by
Dieter:
The following schematic shows how to use the tube for a Dekatron
spinner.
If you don't know what a Dekatron spinner is
click here!
The circuit can be used at 100-125VAC/50-60 Hz or 210-240VAC/50-60Hz.
Downloads/Datasheets:
Sie finden passende Datenblätter
im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.
You'll find the matching datasheets in
the datasheet archive.
Search for this type and its substitutes there.
