VX9194 CV6044 (ETL)

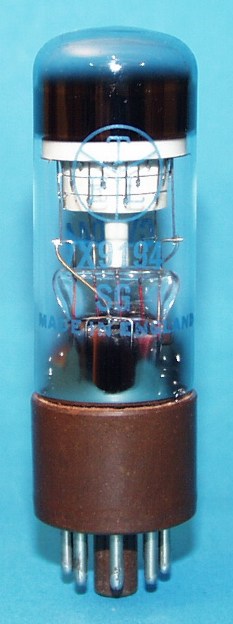

Dekatron counting tube

Bi-directional double-pulse long life decimal counting tube.
Neon filled.



The following pictures show the tube spinning.
Of course, only one of the cathodes is glowing, but the opening time of the camera leads to that different pictures:

a middle opening time of the camera:

a short opening time of the camera:

a long opening time of the camera:

by night, with  long opening time of the camera:

An animation of a spinning dekatron:

German English
Röhrentyp Tube type   VX9194 CV6044
Hersteller Brand   ETL
Vergleichstypen Substitutes   GC10B/L, CV6044, VX9194
Zähl-Richtung Counting direction   bidirectional
Arbeitsweise Operation   double pulse
Art Sort   counting tube
Sockel Base   K8A
Fassung Socket   K8A
Nullposition Zero position   Pin 6
Zähl-Schritte Counting steps   10
Anzahl der Hilfskathoden Number of guides   2
Hinweise Remarks   long life
Gasfüllung Gas filling   Neon
Röhrendurchmesser maximal Tube diameter max. mm 32.5
Röhrenhöhe maximal Tube height max. mm 103.25

max. Zähl-Geschwindigkeit Max. counting speed kHz 4
Betriebsspannung minimal Supply volt. min. V 350
Betriebsspannung typisch Supply volt. typ. V 400
Brennspannung typisch Maintaining voltage typ. V 190
Anoden bzw. Kathodenstrom min. Anode/cath. current min. µA 250
Anoden bzw. Kathodenstrom typ. Anode/cath. current typ. µA 310
Anoden bzw. Kathodenstrom max. Anode/cath. current max. µA 550
Netzteil Leistung minimal Power supply power min. mW 124
Anodenwiderstand typisch Anode resistor typical 470
Hilfskathodenvorspannnung Impulsbetrieb typ. Guide bias typ pulse op. V 35
Hilfskathodenvorspannnung Sinusbetrieb typ. Guide bias typ sine op. V 9
Hilfskathodenvorspannnung maximal Guide bias volt. max. V 60
Hilfskathodenimpulsspannung Guide signal voltage pulse Vp -120
Hilfskathodenimpulsspannung eff. (Sinus) Guide signal voltage eff. (sine) Veff 60 (55)
Hilfskathodenimpulsdauer minimal Guide signal pulse duration min µs 80
Hilfskathodenwiderstand maximal Guide resistor max. 220
Kathodenwiderstand typisch Cathode resistor typical 33
Kathodenwiderstand maximal Cathode resistor max. 100

Anschlussbelegung: Pinout:
PIN 01 PIN 01   K1-9
PIN 02 PIN 02   NC
PIN 03 PIN 03   G1
PIN 04 PIN 04   A
PIN 05 PIN 05   G2
PIN 06 PIN 06   NC
PIN 07 PIN 07   K0
PIN 08 PIN 08   NC

Pinout & Outline:

Downloads/Datasheets:

Sie finden passende Datenblätter im Datenblattarchiv.
Suchen sie dort nach dieser Type und deren Vergleichstypen.

You'll find the matching datasheets in the datasheet archive.
Search for this type and its substitutes there.
